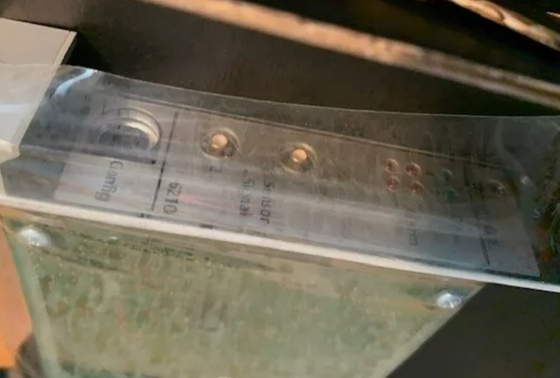

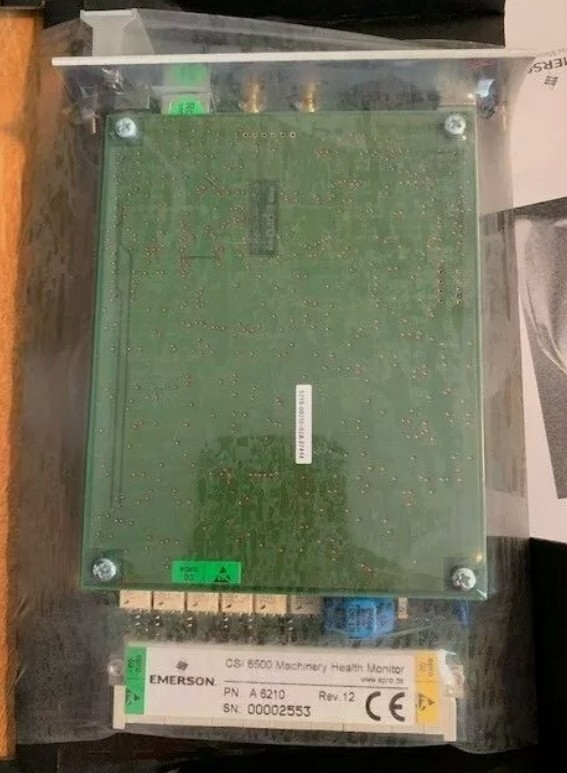

A6210 Emerson Thrust Position Differential Expansion And Rod Position Monitor

A6210 Emerson Thrust Position Differential Expansion And Rod Position Monitor

Product Details:

Additional Information:

Description:

The A6210 monitor can also be configured for differential expansion measurements. As both the case and rotor grow due to changes in thermal conditions at turbine start-up, differential expansion delivers a measure of the relative difference between mounted displacement sensors on the case and the sensor target on the shaft.

If the case and shaft grow at approximately the same rate, then the differential expansion remains close to the desired value of zero. The differential expansion measurement mode supports tandem/complementary or cone/ ramp modes.

• Two-channel, 3U size, 1-slot plugin module decreases cabinet space requirements in half from traditional four-channel 6U size cards
• API 670 and API 618 compliant hot swappable module
• Front and rear buffered and proportional outputs, 0/4-20 mA output, 0 - 10 V output
• Self-checking facilities include monitoring hardware, power input, hardware temperature, simplifies and cable
• Built-in software linearization easing sensor adjustment after installation
• Use with displacement sensor 6422, 6423, 6424 and 6425 and driver CON xxx

The AMS 6500 includes easy integration to the DeltaV and Ovation process automation systems, including preconfigured DeltaV Graphic Dynamos and Ovation Graphic Macros to speed operator graphic development. AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

Datasheet Link:Emerson CSI6500.pdf
