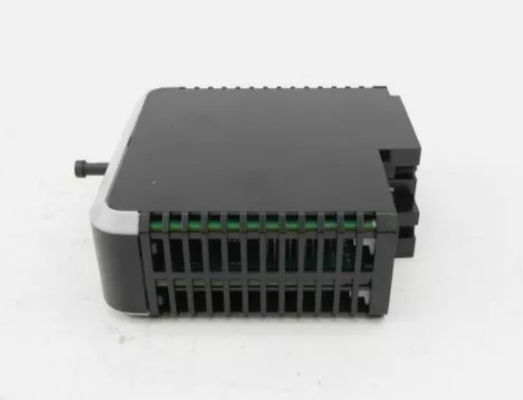

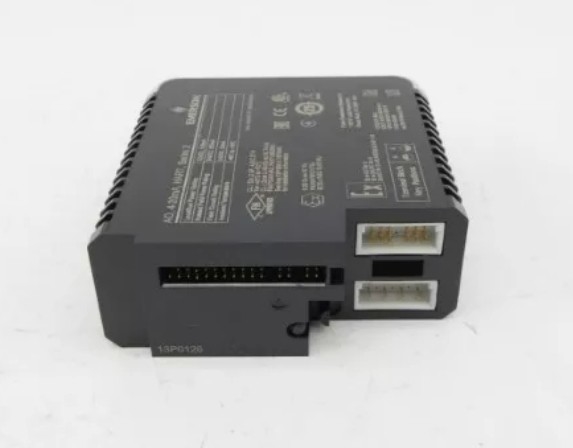

KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel

KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel

  • KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel
  • KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel
KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel
Product Details:
Place of Origin: Germany
Brand Name: Emerson EPRO
Certification: CO
Model Number: KJ3221X1-BA2
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: $3000
Packaging Details: Original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Brand Name: Emerson EPRO Product Model: KJ3221X1-BA2
Part Number: KJ3221X1-BA2 Packing: Original
Warranty: 1 Year Lead Time: In Stock
Highlight:

HART Emerson AO

KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel





Product Details:



Brand Name Emerson
Model KJ3221X1-BA2
Ordering information KJ3221X1-BA2
Catalog Delta V
Origin Germany
Dimension 16*16*12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $3000
Warranty 12 months
Lead time 3-5 work days




Additional Information:



Features
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 300 mA
Field Circuit 24 VDC at 23 mA/Channel
Ambient Temperature -40 to +70 °C
Shock 10 G ½ sinewave for 11 msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants ISA-S71.04–1985 Airborne Contaminants Class G3
Relative Humidity 5% to 95% non-condensing
Terminal Block key Position A4




Description:



The Emerson KJ3221X1-BA2 this unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.



A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.



Non-sparking field circuits MUST be de-energized before removing and inserting including the fused terminal block.



Field power supplied to this device, either at the field terminal or as bussed field power through the Carrier, must be removed before removing or connecting the device.





KJ3221X1-BA2 Emerson AO 4-20 mA HART 8-Channel 0





Datasheet Link:Emerson KJ3221X1-BA2.pdf
