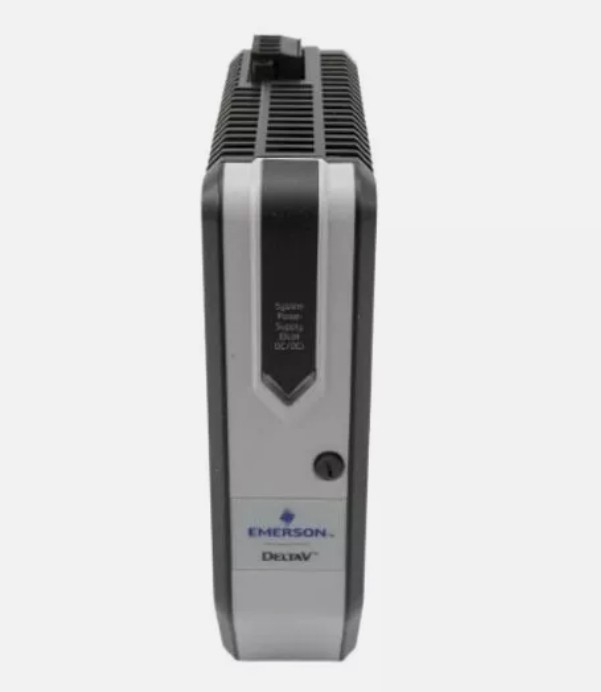

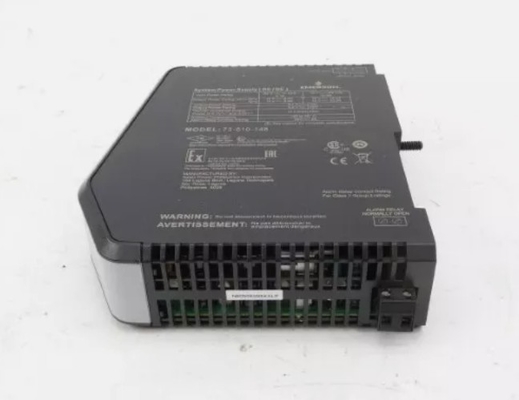

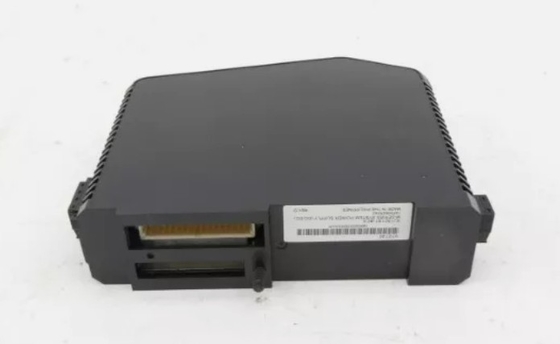

Name: KJ1501X1-BC4 Emerson System Dual DC Power Supply
Brand: Joyoung International Trading Co.,Ltd
SKU: KJ1501X1-BC4
Price: 2000 USD
Availability: InStock

Home Products Emerson EPRO

KJ1501X1-BC4 Emerson System Dual DC Power Supply

Product Details:

Place of Origin:	Germany
Brand Name:	Emerson EPRO
Certification:	CO
Model Number:	KJ1501X1-BC4

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	$2000
Packaging Details:	Original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Brand Name:	Emerson EPRO	Product Model:	KJ1501X1-BC4
Part Number:	KJ1501X1-BC4	Packing:	Original
Warranty:	1 Year	Lead Time:	In Stock
Highlight:	Dual DC Power Supply

KJ1501X1-BC4 Emerson System Dual DC Power Supply

Product Details:

Brand Name	Emerson
Model	KJ1501X1-BC4
Ordering information	KJ1501X1-BC4
Catalog	Delta V
Origin	Germany
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$2000
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features
Input Power Rating	12 VDC at 14.8 A 24 VDC at 6.1 A
Output rating	12 VDC at 13 A (12 VDC input) 12 VDC at 8 A (24 VDC input) 5.1 VDC at 2.0 A 3.4 VDC at 2.0 A
Output Power	10.2 W (total from +5.1 VDC and +3.4 VDC)
Ambient Temperature	-40 to +70 °C
Shock	10 G ½ sinewave for 11 msec
Vibration	1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants	ISA-S71.04–1985 Airborne Contaminants Class G3
Relative Humidity	5% to 95% non-condensing

Description:

The Emerson KJ1501X1-BC4 this unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required. This unit cannot be removed or inserted with system power energized.

The voltage source to this power supply in 12 VDC passthrough mode must not generate or contain in normal operation, a source of potential in excess of 12.6 VDC and supply no more than 16 A maximum.

This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV™ Scalable Process System Zone 2 Installation Instructions”. Other installation instructions are available in the "DeltaV™ S-Series and CHARMs Hardware Installation" manual.

KJ1501X1-BC4 Emerson System Dual DC Power Supply 0

Datasheet Link:Emerson KJ1501X1-BC4.pdf
