Name: KJ3201X1-BA1 Emerson EPRO DI 8-Channel 24 VDC Dry Contact Series 2 Card
Brand: Joyoung International Trading Co.,Ltd
SKU: KJ3201X1-BA1
Price: 250 USD
Availability: InStock

Home Products Emerson EPRO

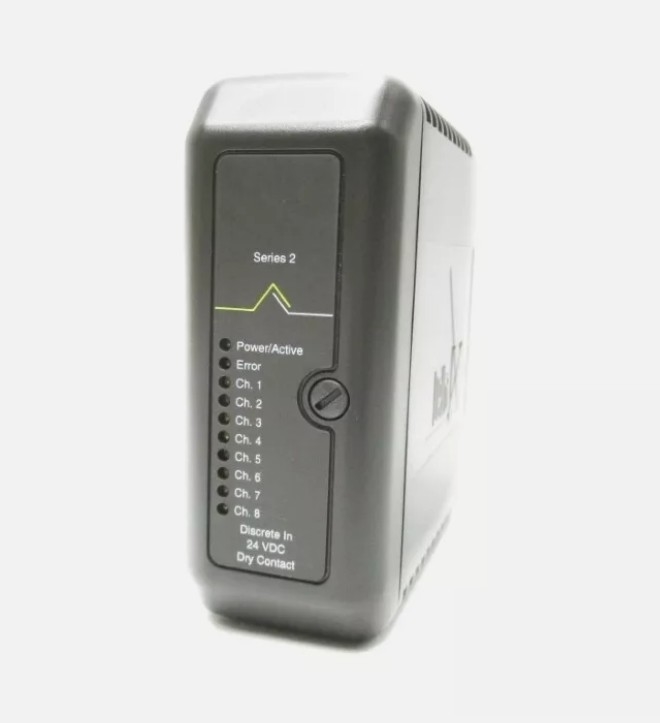

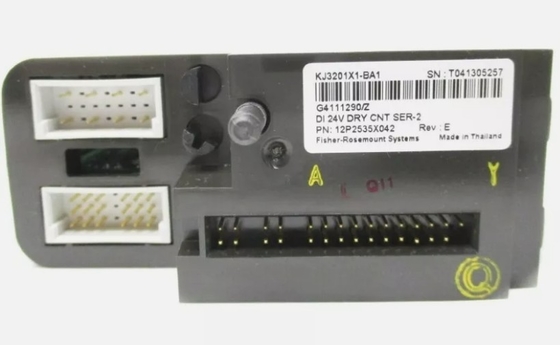

KJ3201X1-BA1 Emerson EPRO DI 8-Channel 24 VDC Dry Contact Series 2 Card

Product Details:

Place of Origin:	China
Brand Name:	Emerson EPRO
Certification:	CO
Model Number:	KJ3201X1-BA1

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	$250
Packaging Details:	Original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Brand Name:	Emerson EPRO	Product Model:	KJ3201X1-BA1
Part Number:	KJ3201X1-BA1	Packing:	Original
Warranty:	1 Year	Lead Time:	In Stock
Highlight:	KJ3201X1-BA1 Emerson EPRO , 8-Channel Emerson EPRO

KJ3201X1-BA1 Emerson DI, 8-Channel, 24 VDC, Dry Contact Series 2 Card

Product Details:

Brand Name	Emerson
Model	KJ3201X1-BA1
Ordering information	KJ3201X1-BA1
Catalog	Delta V
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$250
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features
LocalBus power rating	12 VDC at 150 mA
Bussed field power rating	24 VDC at 100 mA
Field circuit rating	24 VDC at 5 mA/channel
Ambient Temperature	-40 to 70℃
Shock	10g ½ Sinewave for 11 msec
Vibration	1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
Airborne Contaminants	ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity	5 to 95% Non-Condensing IP 20 Rating
Terminal block key position	B1

Description:

The Emerson DeltaV KJ3201X1-BA1 this unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.An I/O loop assessment must be completed on all energy-limited nodes.

This unit may be removed or inserted while system power is energized under the following conditions: (Note Only one unit at a time may be removed with system power energized.)

When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on 24 VDC or 12 VDC input power. The primary circuit wiring inductance for input power must be less than 23 uH, or a certified supply with an open circuit voltage, Ui of 12.6 VDC and an Lo of less than 23 uH (including wire inductance).

Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.

KJ3201X1-BA1 Emerson EPRO DI 8-Channel 24 VDC Dry Contact Series 2 Card 0

Datasheet Link:Emerson KJ3201X1-BA1.pdf
