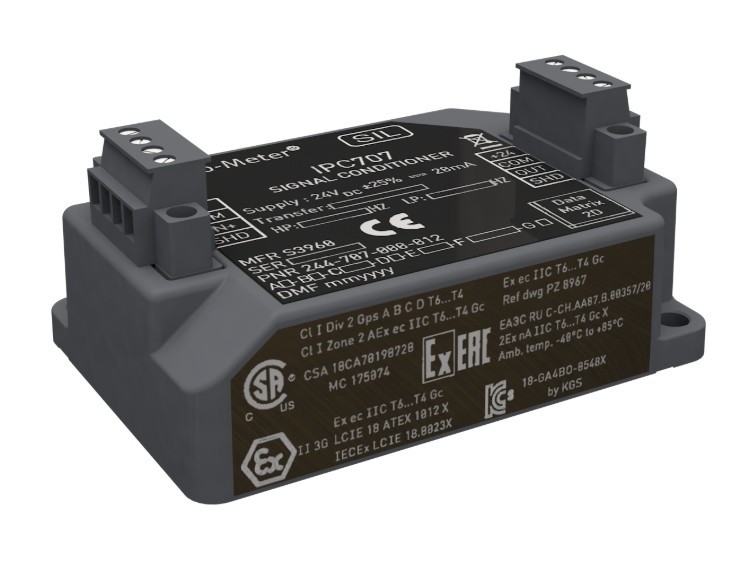

IPC707 244-707-000-012 A2-B1-C98100-D3-E10-F6200-G1 Signal Conditioner
Product Details:
|
Brand Name
|
Others
|
|
Model
|
IPC707
|
|
Ordering information
|
244-707-000-012 A2-B1-C98100-D3-E10-F6200-G1
|
|
Catalog
|
Vibration Monitoring
|
|
Origin
|
China
|
|
Dimension
|
16*16*12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
8537101190
|
|
Payment
|
T/T
|
|
Sales Price
|
$3000
|
|
Warranty
|
12 months
|
|
Lead time
|
3-5 work days
|
Additional Information:
|
Features
|
|
For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors
|
|
Configurable high-pass and low-pass filters (independent of transfer function)
|
|
Frequency range: 0.5 Hz to 20 kHz
|
|
Optional integrator to produce a velocity output
|
|
pC to μA transfer function for current-signal transmission over longer distances
|
|
pC to mV transfer function for voltage-signal transmission over shorter distances
|
|
Certified for use in potentially explosive atmospheres
|
|
Optional diagnostic circuitry to detect sensor, cabling and/or signal conditioner problems
|
|
Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and PL c Cat 1 in accordance with ISO 13849
|
|
Removable screw-terminal connectors
|
|
DIN-rail mounting
|
Description:
The IPC707 is a signal conditioner. It is designed for operation with sensors containing a piezoelectric sensing element that provide a charge output and require an external signal conditioner (charge amplifier).
The IPC707 signal conditioner is a versatile and highly configurable device that converts and processes the charge-based signal from a piezoelectric-based sensor into a current output or a voltage output signal, suitable for transmission to a monitoring system via a standard current (2-wire) or voltage (3-wire) transmission cable.
The IPC707 is designed for operation with vibration measurement chains using CAxxx piezoelectric accelerometers and pressure measurement chains using CPxxx dynamic pressure sensors. It can also be used with other piezoelectric-based sensors and cabling assemblies that meet the required input characteristics.
