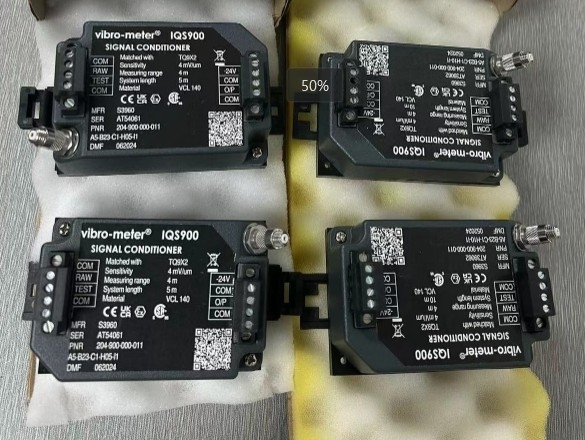

IQS900 204-900-000-011 A1-B21-C1-H05-I0 Signal Conditioner

IQS900 204-900-000-011 A1-B21-C1-H05-I0 Signal Conditioner

Product Details:

Additional Information:

Description:

The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to a TQ9xx sensor. This generates an electromagnetic field in the tip of the sensor, which generates eddy-currents in the metallic target. When the target moves, the eddy-currents change, which causes a change in the electrical characteristics of the TQ9xx that the signal conditioner converts into a signal that is proportional to the distance to the target.

For a IQS900 signal conditioner with optional diagnostics, the quasi-static DC component also functions as a diagnostic indicator. That is, the IQS900’s diagnostic circuitry continuously checks the integrity of the measurement chain and will drive the measurement/diagnostic component (DC) outside of its normal operating range to indicate a problem with the sensor, the cabling and/or the signal conditioner itself.

The IQS900’s output is an analogue signal consisting of a dynamic component (AC) that corresponds to the measured vibration (displacement) and a quasistatic component (DC) that corresponds to the measured gap. The output can be configured as a current or a voltage signal, suitable for transmission to a monitoring system via current (2-wire) or voltage (3-wire) transmission cables, respectively.

The IQS900 signal conditioner’s output is a dynamic signal suitable for spectral analysis. As such, the IQS900 is recommended for machinery protection and/or advanced condition monitoring applications. For more basic applications, a slowly-varying output signal such as that provided by the IQS910 signal conditioner could be more suitable. Refer to the IQS910 signal conditioner data sheet for more information.
