TQ902 111-902-000-011 A1-B1-C50-D2-E1000-F0-G0 Proximity Measurement Chain
Product Details:
|
Brand Name
|
Others
|
|
Model
|
TQ902 111-902-000-011
|
|
Ordering information
|
A1-B1-C50-D2-E1000-F0-G0
|
|
Catalog
|
Vibration Monitoring
|
|
Origin
|
China
|
|
Dimension
|
16*16*12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
8537101190
|
|
Payment
|
T/T
|
|
Sales Price
|
$2700
|
|
Warranty
|
12 months
|
|
Lead time
|
3-5 work days
|
Additional Information:
|
Features
|
|
Non-contact measurement based on eddy-current principle
|
|
Available in standard versions and Ex versions certified for use in potentially explosive atmospheres (hazardous areas)
|
|
Conforms to API 670 5th edition
|
|
1, 5 and 10 m chains
|
|
Temperature-compensated design
|
|
Voltage or current output with protection against short circuits
|
|
Current-signal transmission over distances up to 1 km
|
|
Frequency response:DC to 20kHz (-3 dB)
|
|
Linear measurement range: 2 or 4 mm
|
|
Temperature range (sensor): −40 to 180 °C
|
Description:
TQ9xx-based proximity measurement chains allow contactless measurement of the relative displacement of moving machine elements, and provide an output signal proportional to the distance between the sensor tip and the target.
Accordingly, these measurement chains are ideally suited for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo-compressors and pumps.
A TQ9xx-based proximity measurement chain consists of a TQ9xx proximity sensor, an optional EA90x extension cable and an IQS900 signal conditioner, configured for a particular industrial application. The EA90x extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.

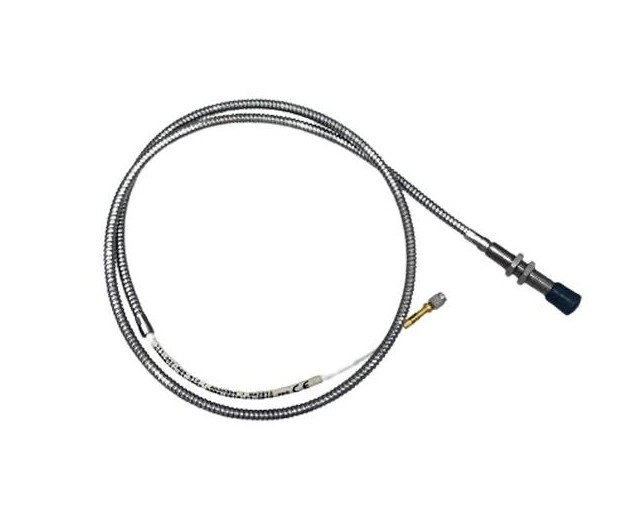

The active part of a TQ9xx proximity sensor is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic.
