EA902 913-902-000-011 A1-E4000-F0-G0 Proximity Measurement Chain
Product Details:
|
Brand Name
|
Others
|
|
Model
|
EA902 913-902-000-011
|
|
Ordering information
|
A1-E4000-F0-G0
|
|
Catalog
|
Vibration Monitoring
|
|
Origin
|
China
|
|
Dimension
|
16*16*12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
8537101190
|
|
Payment
|
T/T
|
|
Sales Price
|
$1200
|
|
Warranty
|
12 months
|
|
Lead time
|
3-5 work days
|
Additional Information:
|
Features
|
|

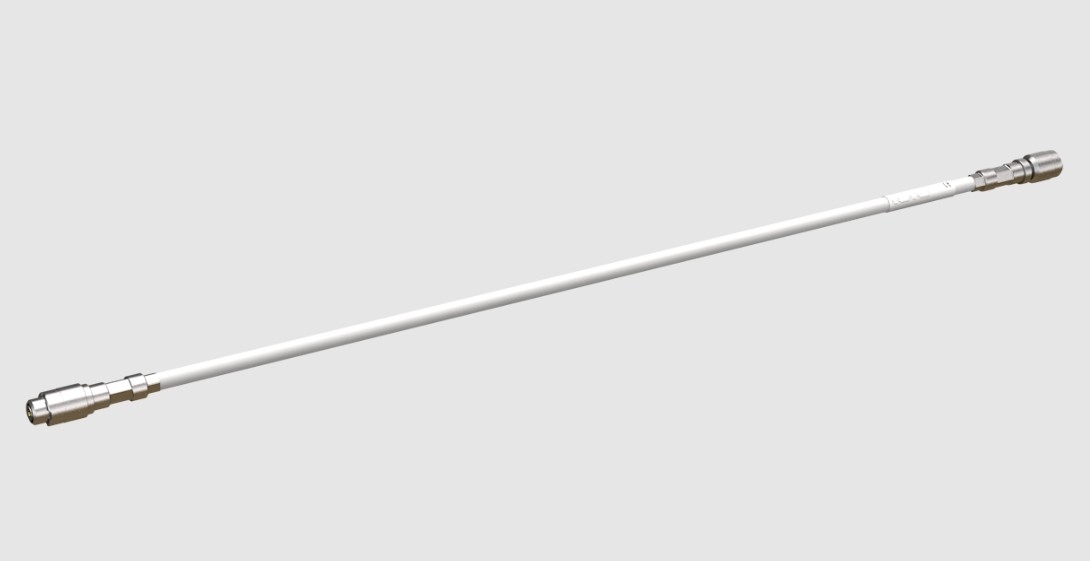

Very high-quality, reliable extension cable for TQ9x2 proximity measurement chains
|
|
70 Ω coaxial cable with FEP insulation (Ø3.6 mm)
|
|
1-core, with shield
|
|
Self-locking miniature coaxial connector (female) to self-locking miniature coaxial connector (male)
|
|
Versions certified for use in potentially explosive atmospheres
|
|
Conforms to API 670 5th edition
|
Description:
A TQ9xx-based proximity measurement chain consists of a TQ9xx proximity sensor, an optional EA90x extension cable and an IQS900 signal conditioner, configured for a particular industrial application.
The EA90x extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.
Optional interconnection protectors (IP172), junction boxes (JB118) and other housings are available for the mechanical and environmental protection of the connection between a TQ9xx sensor’s integral cable and an EA90x extension cable.
The total system length (TSL) is the sum of the length of the TQ9xx sensor’s integral cable and the length of the EA90x extension cable. For TQ902/TQ912, EA902 and IQS900 proximity measurement chains, the supported TSLs are obtained from the following different combinations of cables.
