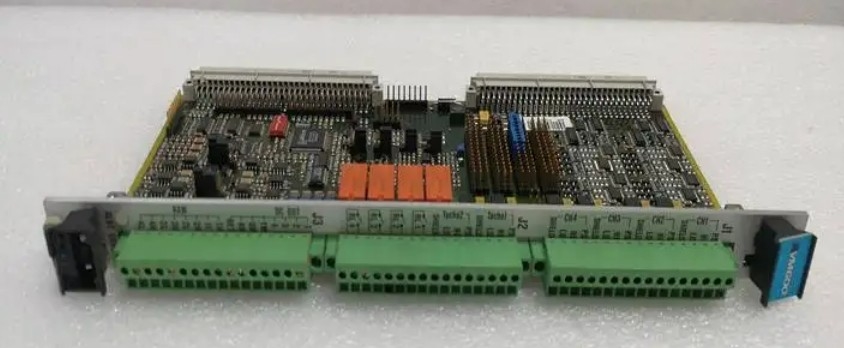

IOC4T 200-560-000-114 Input/Output Card
Product Details:
|
Brand Name
|
Others
|
|
Model
|
IOC4T
|
|
Ordering information
|
200-560-000-114
|
|
Catalog
|
Vibration Monitoring
|
|
Origin
|
China
|
|
Dimension
|
16*16*12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
8537101190
|
|
Payment
|
T/T
|
|
Sales Price
|
$1700
|
|
Warranty
|
12 months
|
|
Lead time
|
3-5 work days
|
Additional Information:
|
Features
|
|
Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card
|
|
Screw-terminal connectors (48 terminals) for all input/output connections
|
|
Contains 4 relays which can be attributed to alarm signals, under software control
|
|
32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards
|
|
Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels
|
|
EMI protection for all inputs and outputs
|
|
Live insertion and removal of cards (hot-swappable)
|
|
Available in “standard” and “separate circuits” versions
|
Description:
The IOC4T input /output card acts as a signal interface for the series MPC4 machinery protection card. It is installed in the rear of a rack and connects directly to the rack backplane via two connectors.
Each IOC4T card is associated with a corresponding MPC4 card and is mounted directly behind it in the rack (ABE04x or ABE056). The IOC4T operates in slave mode and communicates with the MPC4, through connector P2, using an Industry Pack (IP) interface.
The IOC4T card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets electromagnetic compatibility (EMC) standards.
The IOC4T connects the raw dynamic (vibration) and speed signals from the sensors to the MPC4. These signals, once processed, are passed back to the IOC4T and made available on the terminal strip on its front panel.
For the dynamic signals, four on-board digital-to-analog converters (DACs) provide calibrated signal outputs in the range 0 to 10 V. In addition, four onboard voltage-to-current converters allow the signals to be provided as current outputs in the range 4 to 20 mA (jumper selectable).
