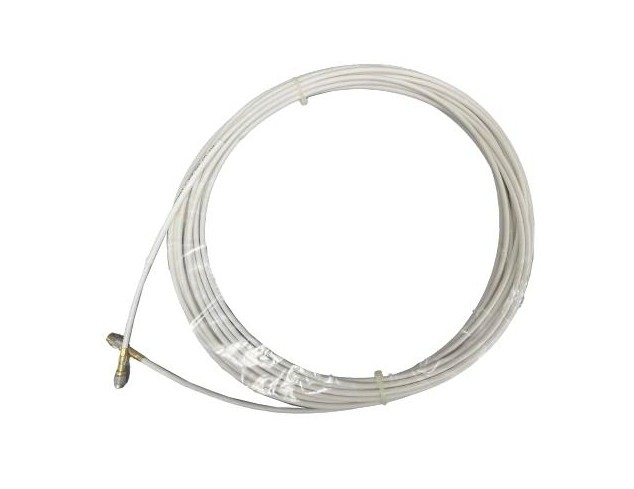

EA402 913-402-000-013 A1-E040-F0-G000 Proximity Measurement System
Product Details:
| Brand Name |
Others |
| Model |
EA402 913-402-000-013 |
| Ordering information |
A1-E040-F0-G000 |
| Catalog |
Vibration Monitoring |
| Origin |
China |
| Dimension |
16*16*12cm |
| Weight |
0.8kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$1000 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Additional Information:
| Features |
| Transducer |
−40 to +180°C with drift <5% (operating).
+180 to +220°C with drift >5% (short-term survival).
|
| Transducer and cable |
−40 to +195°C if used in an Ex Zone |
| Cable, connector and optional protection |
−40 to +200°C |
|
Protection rating
(according to IEC 60529)
|
The head of the proximity transducer
(transducer tip and integral cable) is rated IP68
|
|
Vibration
(according to IEC 60068-2-26)
|
5 g peak between 10 and 500 Hz |
|
Shock acceleration
(according to IEC 60068-2-27)
|
15 g peak (half sine-wave, 11 ms duration) |
Description:
The TQ402/TQ412, EA402 and IQS900 form a proximity measurement system. This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.
All dimensions are in mm unless otherwise stated. The total system length = TQ402 or TQ412 integral cable length + EA402 extension cable length (E). For information on combining integral and extension cables to obtain a particular total system length.
When optional protection such as a flexible stainless steel hose with or without an FEP sheath is ordered: Flexible hose length (G) max. = EA402 extension cable length (E) − 150 mm, for an extension cable that is protected to the maximum extent possible (“cable fully covered”).
The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable.
The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
The TQ402 and TQ412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
