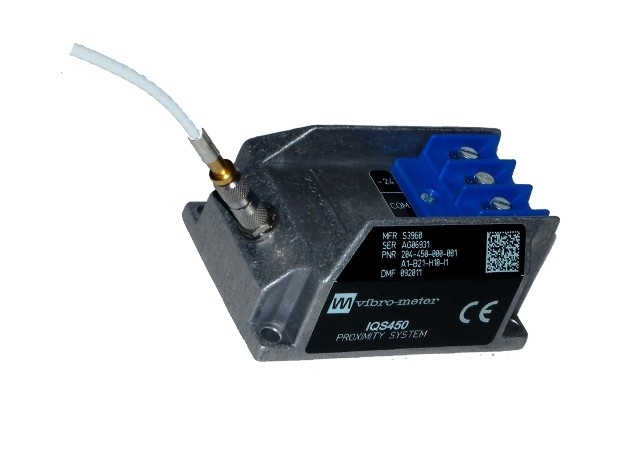

IQS450 204-450-000-002 A1-B21-H10-I1 Proximity Measurement System

IQS450 204-450-000-002 A1-B21-H10-I1 Proximity Measurement System

Product Details:

Additional Information:

Description:

The system is based around a TQ401 non-contact sensor and an IQS450 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.

The IQS450 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electro-magnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

General Transducer input requirements : High-frequency power source from an IQS450 signal conditioner

IQS450 signal conditioner:

Voltage output, 3-wire configuration:

• Voltage at min. GAP : −1.6 V

• Voltage at max. GAP : −17.6 V

• Dynamic range : 16 V

• Output impedance : 500 Ω

• Short-circuit current : 45 mA

Current output, 2-wire configuration:

• Current at min. GAP : −15.5 mA

• Current at max. GAP : −20.5 mA

• Dynamic range : 5 mA

Output capacitance : 1 nF

Output inductance : 100 µH
