TQ402 111-402-000-012 A1-B1-C045-D000-E010-F0-G000-H10 Proximity Measurement System

Product Details:

Place of Origin:	China
Brand Name:	Other Brands
Certification:	CO
Model Number:	TQ402 111-402-000-012 A1-B1-C045-D000-E010-F0-G000-H10

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	$2500
Packaging Details:	Original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Brand Name:	Other Brands	Product Model:	TQ402 111-402-000-012
Part Number:	A1-B1-C045-D000-E010-F0-G000-H10	Packing:	Original
Warranty:	1 Year	Lead Time:	In Stock
Highlight:	TQ402 Proximity Measurement System , A1-B1-C045-D000-E010-F0-G000-H10 Proximity Measurement System , 111-402-000-012 Proximity Measurement System

TQ402 111-402-000-012 A1-B1-C045-D000-E010-F0-G000-H10 Proximity Measurement System

Product Details:

Brand Name	Others
Model	TQ402 111-402-000-012
Ordering information	A1-B1-C045-D000-E010-F0-G000-H10
Catalog	Vibration Monitoring
Origin	China
Dimension	161612cm
Weight	0.8kg
HS Code	8537101190
Payment	T/T
Sales Price	$2500
Warranty	12 months
Lead time	3-5 work days

Additional Information:

RELATED PRODUCTS
TQ902/TQ912, EA902 and IQS900	Proximity measurement chains (2 or 4 mm measurement range)
TQ922/TQ932, EA902 and IQS900	Proximity measurement chains (2 or 4 mm measurement range, high-pressure applications)
TQ942, EA902 and IQS900	Proximity measurement chain (2 or 4 mm measurement range, right-angle (90°) mount sensor)
TQ401, EA401 and IQS450	Proximity measurement system (2 mm measurement range)
TQ403, EA403 and IQS450	Proximity measurement system (12 mm measurement range)
TQ422/TQ432, EA402 and IQS450	Proximity measurement system (2 or 4 mm measurement range, high-pressure applications)
TQ423, EA403 and IQS450	Proximity measurement system (12 mm measurement range, high-pressure applications)
TQ442, EA402 and IQS450	Proximity measurement system (2 or 4 mm measurement range, right-angle (90°) mount)
PA150	Probe mounting adaptor with proximity measurement system

Description:

Non-contact measurement system based on eddy-current principle.
Ex certified versions for use in hazardous areas (potentially explosive atmospheres)
Conforms to API 670 recommendations
1, 5 and 10 m systems
Temperature-compensated design
Voltage or current output with protection against short circuits
Frequency response: DC to 20 kHz (−3 dB)
Measurement range: 2 or 4 mm
Temperature range: −40 to +180℃

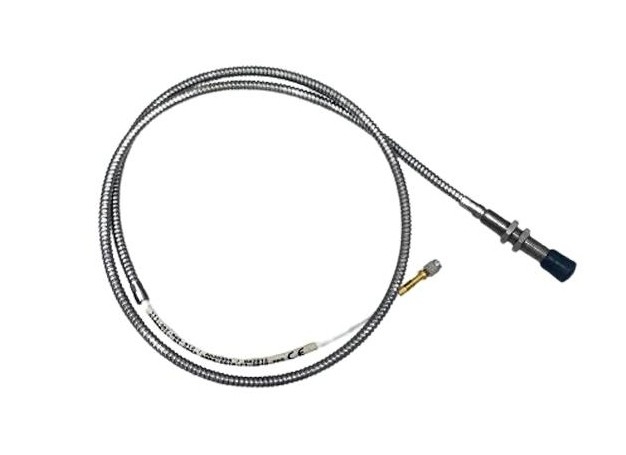

TQ402 111-402-000-012 A1-B1-C045-D000-E010-F0-G000-H10 Proximity Measurement System 0

The TQ402/TQ412, EA402 and IQS900 form a proximity measurement system. This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.

TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo-compressors and pumps.
