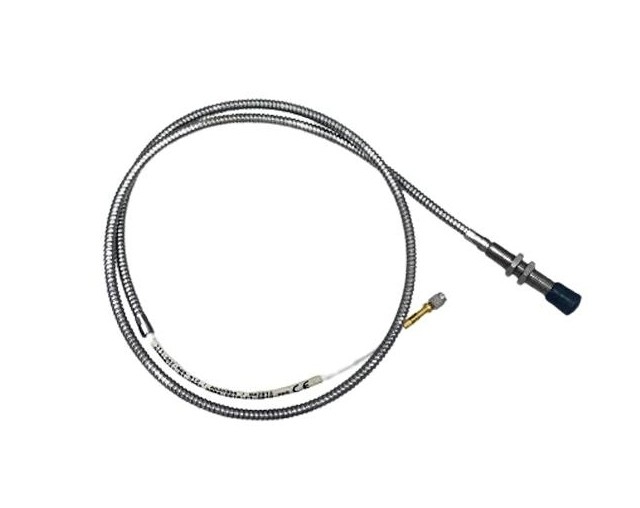

TQ902 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10 Proximity Measurement Chains
Product Details:
| Brand Name |
Others |
| Model |
TQ902 111-902-000-011 |
| Ordering information |
A1-B1-C70-D2-E1000-F0-G0-H10 |
| Catalog |
Vibration Monitoring |
| Origin |
China |
| Dimension |
16*16*12cm |
| Weight |
0.8kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$2700 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Additional Information:
| Features |
| Non-contact measurement based on eddy-current principle |
| Available in standard versions and Ex versions certified for use in hazardous areas (potentially explosive atmospheres) |
| Conforms to API 670 5th edition |
| 1, 5 and 10 m measurement chains |
| Temperature-compensated design |
| Voltage output or current output with short-circuit protection |
| Current-signal transmission over distances up to 1 km |
| Frequency response: DC to 20 kHz (−3 dB) |
| Linear measurement range: 2 or 4 mm |
| Temperature range (sensor): −40 to 180 °C |
Description:
TQ9xx-based proximity measurement chains allow contactless measurement of the relative displacement of moving machine elements, and provide an output signal proportional to the distance between the sensor tip and the target.
Accordingly, these measurement chains are ideally suited for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo-compressors and pumps.
The TQ902 and TQ912 proximity sensors are essentially the same except that the TQ902 is intended for standard-mount and the TQ912 is for reverse-mount applications.
Both sensor bodies are available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector.
A TQ9xx sensor’s integral cable and the EA90x extension cables are available in various lengths, which can be combined to obtain a particular total system length (TSL) for an application.
