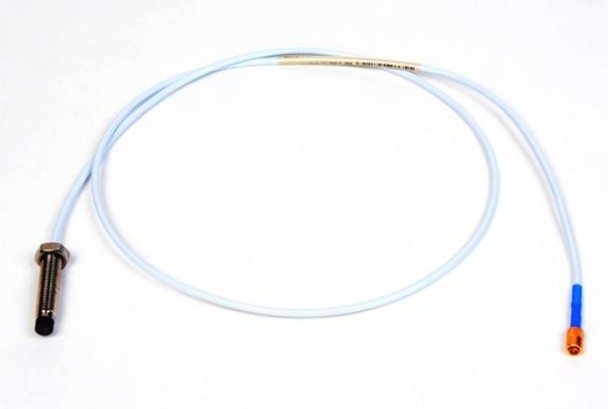

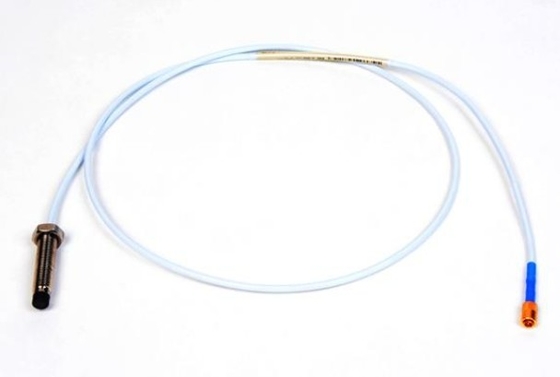

330101-00-48-10-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread Without Armor

330101-00-48-10-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread Without Armor

Additional Information:

Description:

3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.

Maximum thread engagement lengths are per the industry standard of 1.5 times the nominal thread diameter. A fit class matching that of the external probe thread is assumed for all internal threads.

3300XL 8mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. Although the packaging of the 3300 XL Proximitor Sensor differs from its predecessor, its design fits in the same 4-hole mounting pattern when used with the 4-hole mounting base, and will fit within the same mounting space specifications (when minimum permissible cable bend radius is observed).

Product Details:

Datasheet Link:Bently Nevada 3300 XL.pdf
