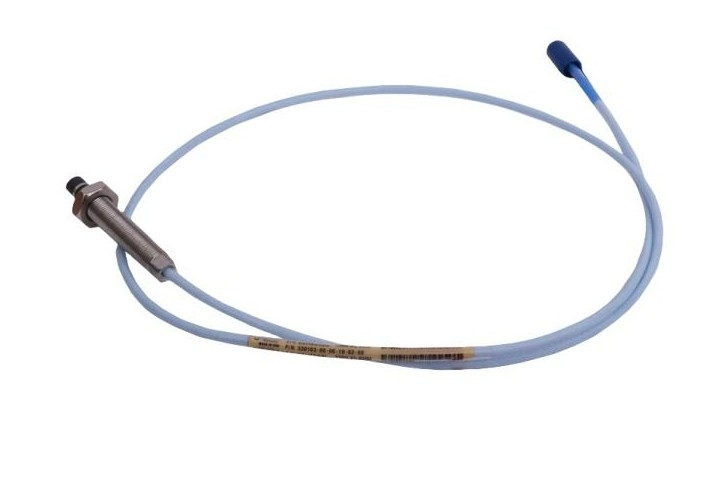

330103-00-05-05-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread Without Armor
Product Details:
| Brand Name |
Bently Nevada |
| Model |
3300XL |
| Ordering information |
330103-00-05-05-02-00 |
| Catalog |
3300XL |
| Origin |
United States (USA) |
| Dimension |
16*16*12cm |
| Weight |
1kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$400 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Additional Information:
| Probe Temperature Range |
| Operating and Storage Temperature |
| Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Extended
Temperature
Range Probe
|
-52°C to +218°C (-62°F to +425°F) for the probe tip; - 51°C to +260°C (-60°F to +500°F) for the probe cable and connector. |
Description:
3300 XL 8 mm Proximity Probes, Metric:
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Datasheet Link:Bently Nevada 3300 XL.pdf
