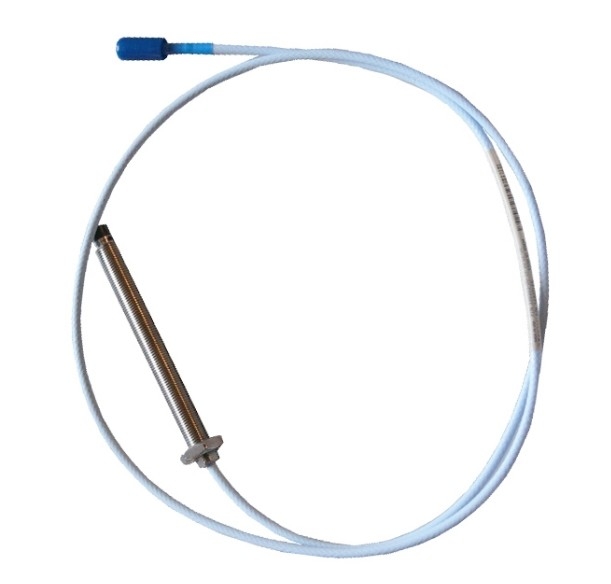

330103-00-05-50-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread Without Armor
Product Details:
| Brand Name |
Bently Nevada |
| Model |
3300XL |
| Ordering information |
330103-00-05-50-02-05 |
| Catalog |
3300XL |
| Origin |
United States (USA) |
| Dimension |
16*16*12cm |
| Weight |
1kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$400 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Description:
Probe Ordering Information Notes:
1. Mounting clamps must be ordered separately for 330140, 330141, 330197, and 330198.
2. For a shorter delivery time, order commonly stocked probes. The following part numbers are currently stocked probes:
330101-00-08-05-02-00, 330101-00-08-05-02- 05, 330101-00-08-10-02-00, 330101-00-08-10- 02-05, 330101-00-12-10-02-00, 330101-00-12-10- 02-05, 330101-00-16-10-02-00, 330101-00-16- 10-02-05, 330101-00-20-05-02-00, 330101-00- 20-10-02-00, 330101-00-20-10-02-05, 330101- 00-30-10-02-00, 330101-00-30-10-02-05, 330101-00-40-05-02-00, 330101-00-40-10-02- 00, 330101-00-40-10-02-05, 330101-00-60-10- 02-00, 330101-00-60-10-02-05, 330102-00-20- 10-02-00, 330103-00-02-10-02-05, 330103-00- 04-10-02-00, 330103-00-05-10-02-00, 330104- 00-06-10-02-00, 330104-01-05-50-02-00, 330105-02-12-05-02-00, 330105-02-12-05-02- 05, 330105-02-12-10-02-00, 330105-02-12-10- 02-05, 330106-05-30-05-02-00, 330106-05- 30-05-02-05, 330106-05-30-10-02-00, 330106- 05-30-10-02-05.
Additional Information:
| Part Number-AA-BB-CC-DD-EE |
| A: Unthreaded Length Option |
|
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
|
| B: Overall Case Length Option |
|
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
|
| C: Total Length Option |
| 05 |
0.5 meter (1.6 feet) |
| 10 |
1.0 meter (3.3 feet) |
| 15 |
1.5 meter (4.9 feet) |
| 20 |
2.0 meters (6.6 feet) |
| 30 |
3.0 meters (9.8 feet) |
| 50 |
5.0 meters (16.4 feet) |
| 90 |
9.0 meters (29.5 feet) |
| D: Connector and Cable-Type Option |
| 01 |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
| 02 |
Miniature coaxial ClickLoc connector, standard cable |
| 11 |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| 12 |
Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: Agency Approval Option |
| 00 |
Not required |
| 05 |
CSA, ATEX, IECEx Approvals |
Datasheet Link:Bently Nevada 3300 XL.pdf
