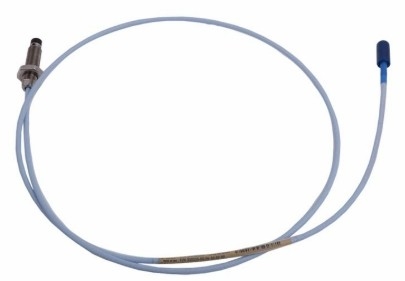

330104-00-04-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe M10 X 1 Thread With Armor

330104-00-04-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread With Armor

Additional Information:

Description:

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

Product Details:

Datasheet Link:Bently Nevada 3300 XL.pdf
