Name: 330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor
Brand: Joyoung International Trading Co.,Ltd
SKU: 330101-00-54-10-02-00
Price: 400 USD
Availability: InStock

Home Products Bently Nevada Parts

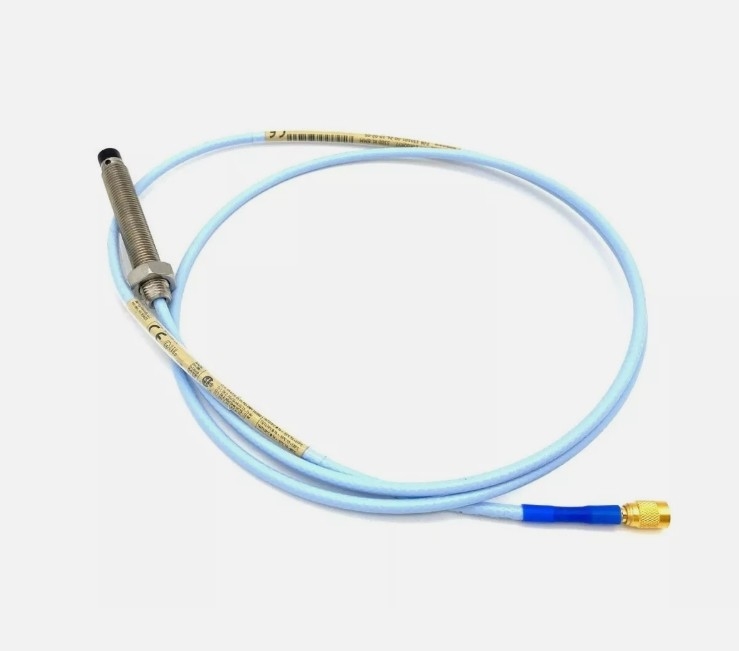

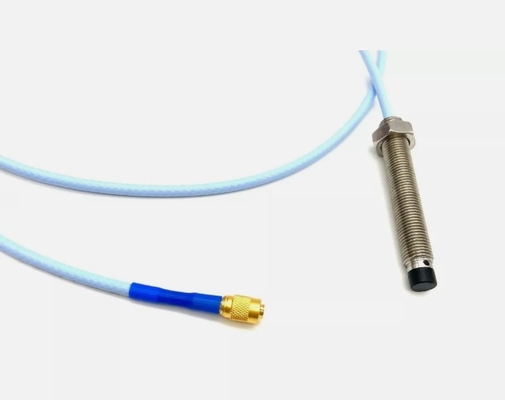

330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	COC
Model Number:	330101-00-54-10-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$400
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe, 3/8-24 UNF Thread Without Armor	Product Model:	330101-00-54-10-02-00
Lead Time:	3-5 Work Days	Condition:	New
Warranty:	12 Months	Shipping By:	DHL,TNT Or EMS,Fedex,UPS
Packing Size:	161612cm	Gross Weight:	1 Kg
Highlight:	330101-00-54-10-02-00 Bently Nevada Probe , 3300XL Bently Nevada Probe , 8 mm Bently Nevada Probe

330101-00-54-10-02-00 3300XL Bently Nevada 8 mm Probe, 3/8-24 UNF Thread Without Armor

Product Details:

Brand Name	Bently Nevada
Model	3300XL
Ordering information	330101-00-54-10-02-00
Catalog	3300XL
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$400
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Description

One-meter systems do not use an extension cable.

Proximitor sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request.

Consult Bently Nevada Applications Note, Considerations when using Eddy Current Proximity Probes for Overspeed Protection Applications, when considering this transducer system for tachometer or overspeed measurements.

3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.

Mixing XL and non-XL 3300-series 5 mm and 8 mm system components limits system performance to the specifications for the nonXL 3300 5 mm and 8 mm Transducer System.

The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe.

8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip.

Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors.

Description:

Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option

Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in.

B: Overall Case Length Option

Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in.

C: Total Length Option

05 0.5 meter (1.6 feet)

10 1.0 meter (3.3 feet)

15 1.5 meter (4.9 feet)

20 2.0 meters (6.6 feet)

30 3.0 meters (9.8 feet)

50 5.0 meters (16.4 feet)

90 9.0 meters (29.5 feet)

330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor 0

D: Connector and Cable-Type Option

01 Miniature coaxial ClickLoc connector with connector protector, standard cable

02 Miniature coaxial ClickLoc connector, standard cable

11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable

12 Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option

00 Not required

05 CSA, ATEX, IECEx Approvals

330101-00-54-10-02-00 3300XL Bently Nevada 8 Mm Probe 3/8-24 UNF Thread Without Armor 1

Datasheet Link:Bently Nevada 3300 XL.pdf
