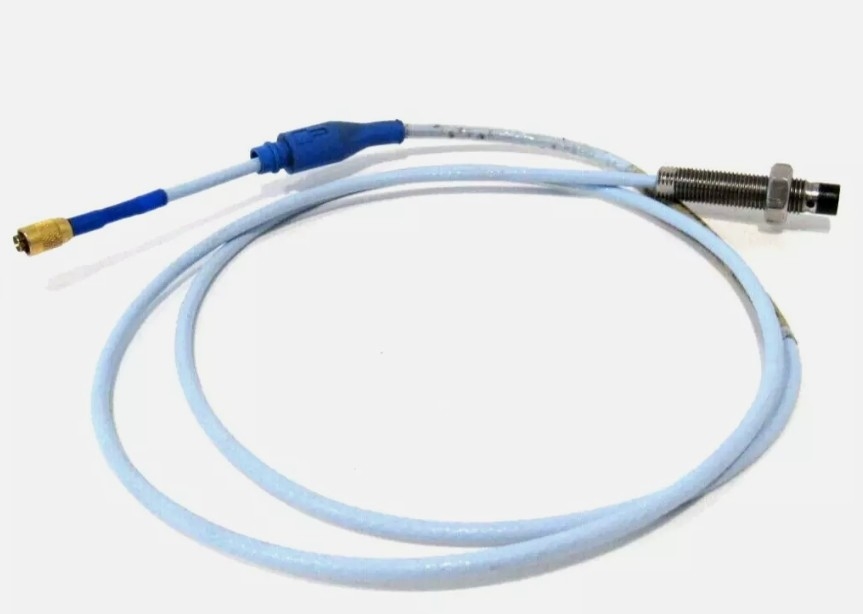

330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe 3/8-24 UNF Thread, Without Armor

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	COC
Model Number:	330101-00-58-10-02-00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$400
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe, 3/8-24 UNF Thread, Without Armor	Product Model:	330101-00-58-10-02-00
Lead Time:	3-5 Work Days	Condition:	New
Warranty:	12 Months	Shipping By:	DHL,TNT Or EMS,Fedex,UPS
Packing Size:	161612cm	Gross Weight:	1 Kg
Highlight:	3300XL Bently Nevada 8 mm Probe , 330101-00-58-10-02-00 Bently Nevada Probe , 3300XL Bently Nevada Probe

330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread, Without Armor

Description:

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,
One 3300 XL extension cable1 , and
One 3300 XL Proximitor Sensor.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe 3/8-24 UNF Thread, Without Armor 0

The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals.

Product Details:

Brand Name	Bently Nevada
Model	3300XL
Ordering information	330101-00-58-10-02-00
Catalog	3300XL
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$400
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in.
C: Total Length Option
05	0.5 meter (1.6 feet)
10	1.0 meter (3.3 feet)
15	1.5 meter (4.9 feet)
20	2.0 meters (6.6 feet)
30	3.0 meters (9.8 feet)
50	5.0 meters (16.4 feet)
90	9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01	Miniature coaxial ClickLoc connector with connector protector, standard cable
02	Miniature coaxial ClickLoc connector, standard cable
11	Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12	Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00	Not required
05	CSA, ATEX, IECEx Approvals

330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe 3/8-24 UNF Thread, Without Armor 1

Datasheet Link:Bently Nevada 3300 XL.pdf
