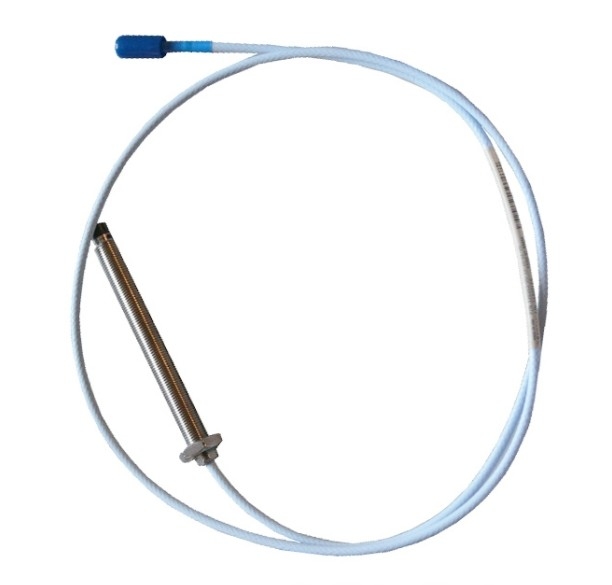

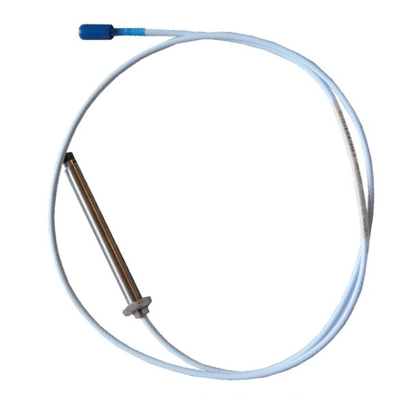

330104-03-08-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread With Armor
Description:
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations: Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Product Details:
| Brand Name |
Bently Nevada |
| Model |
3300XL |
| Ordering information |
330104-03-08-10-02-00 |
| Catalog |
3300XL |
| Origin |
United States (USA) |
| Dimension |
16*16*12cm |
| Weight |
1kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$500 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Additional Information:
| Resistance (RJACKET ) from Outer Conductor to Outer Conductor |
| Length of Extension Cable (m) |
RJACKET (Ω) |
| 3.0 |
0.20 ± 0.04 |
| 3.5 |
0.23 ± 0.05 |
| 4.0 |
0.26 ± 0.05 |
| 4.5 |
0.30 ± 0.06 |
| 6.0 |
0.39 ± 0.08 |
| 7.0 |
0.46 ± 0.09 |
| 7.5 |
0.49 ± 0.10 |
| 8.0 |
0.53 ± 0.11 |
| 8.5 |
0.56 ± 0.11 |
Datasheet Link:Bently Nevada 3300 XL.pdf
