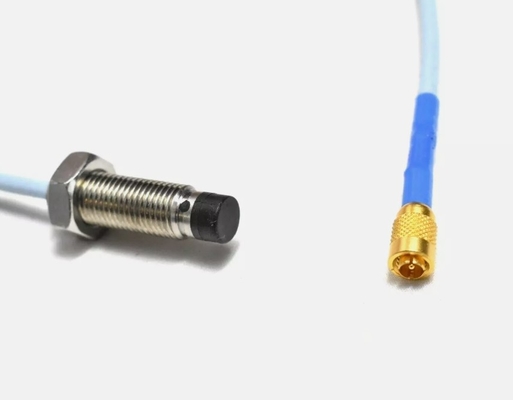

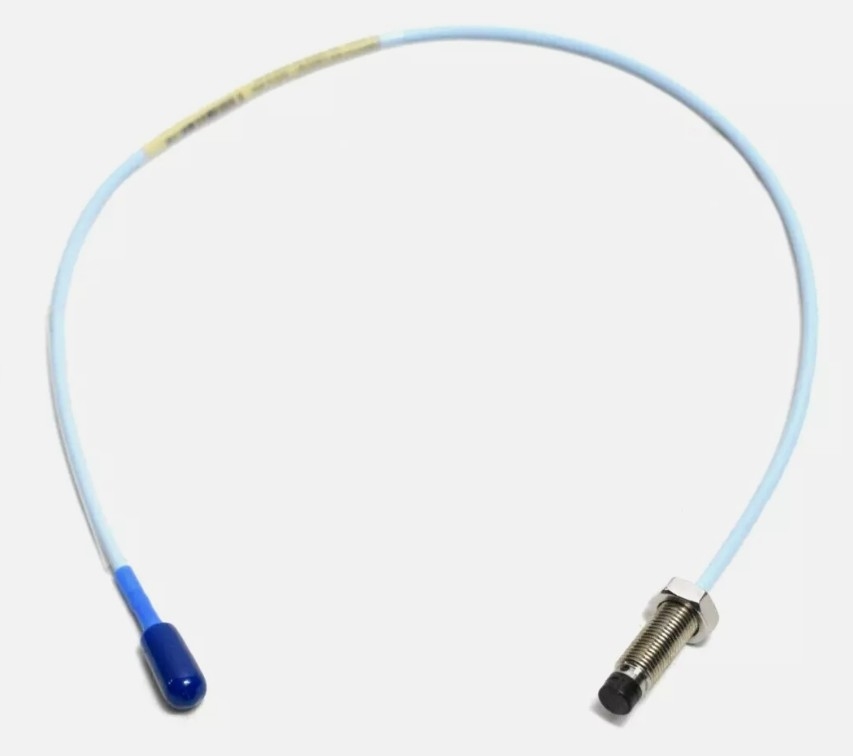

330101-02-12-05-02-CN 3300XL Bently Nevada 8 mm Probe, 3/8-24 UNF thread, without armor
Product Details:
| Brand Name |
Bently Nevada |
| Model |
3300XL |
| Ordering information |
330101-02-12-05-02-CN |
| Catalog |
3300XL |
| Origin |
United States (USA) |
| Dimension |
16*16*12cm |
| Weight |
1kg |
| HS Code |
8537101190 |
| Payment |
T/T |
| Sales Price |
$500 |
| Warranty |
12 months |
| Lead time |
3-5 work days |
Additional Information:
| Features |
| Probe Tip Material |
Polyphenylene sulfide (PPS). |
| Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
| Standard cable |
75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe length |
| Extended Temperature Range cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters. |
| Armor (optional on both) |
Flexible AISI 302 or 304 SST with FEP outer jacket. |
| Tensile Strength (Maximum Rated) |
330 N (75 lbf) probe case to probe lead.
270 N (60 lbf) at probe lead to extension cable connectors.
|
Description:
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
30 3.0 meters (9.8 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector and Cable-Type Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
Datasheet Link:Bently Nevada 3300 XL.pdf
