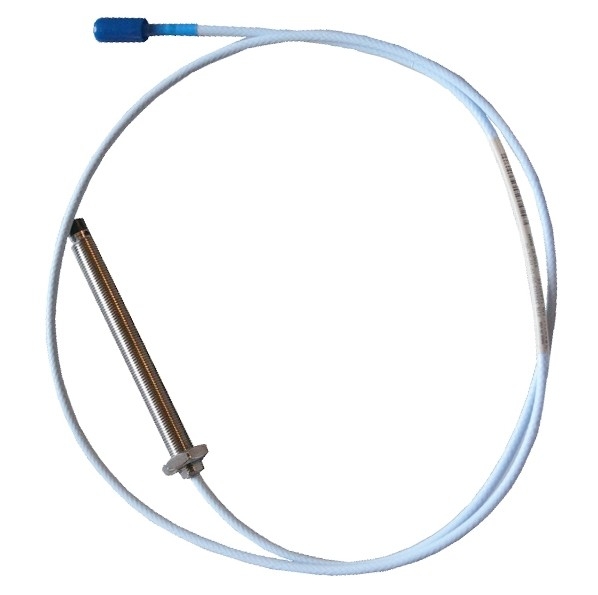

Bently Nevada 330103-00-06-10-02-00 3300XL 8 Mm Proximity Probes Without Armour

Bently Nevada 330103-00-06-10-02-00 3300XL 8 mm Proximity Probes Without Armour

Product Details:

Description:

The 3300 XL 8 mm Proximity Transducer System consists of:

• One 3300 XL 8 mm probe
• One 3300 XL extension cable
• and One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body.

You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Additional Information:

Datasheet Link:Bently Nevada 3300 XL.pdf
