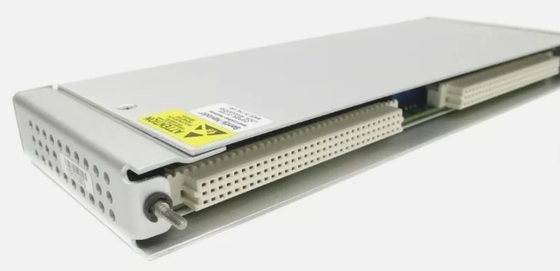

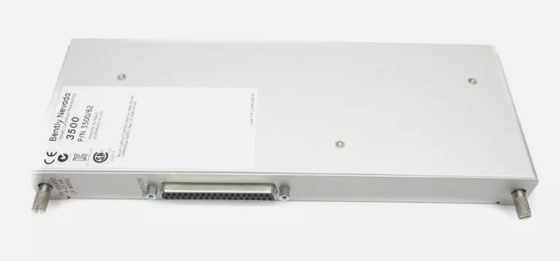

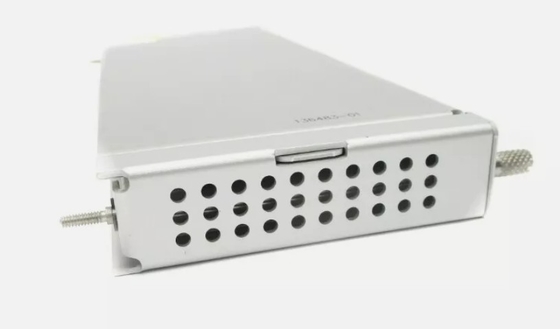

3500/62 163179-03 Bently Nevada Process Variable Monitor Machinery Condition Monitoring

3500/62 163179-03 Bently Nevada Process Variable Monitor Machinery Condition Monitoring

Description:

The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels.

The 3500/62 monitor:

• Continuously compares monitored parameters against configured alarm setpoints to drive alarms for machinery protection.
• Provides essential machine information for both operations and maintenance personnel.

User can set Alert and Danger setpoints for the value measured by the monitor. Alarms are adjustable and can normally be set from 0 to 100% of full-scale for each measured value.

The exception is when the full-scale range exceeds the range of the sensor in which case the setpoint will be limited to the range of the sensor. Accuracy of alarms is to within 0.13% of the desired value. The Process Variable Monitor has both under and over alarm setpoints.

Product Details:

Additional Information:

Datasheet Link:Bently Nevada 3500 62.pdf
