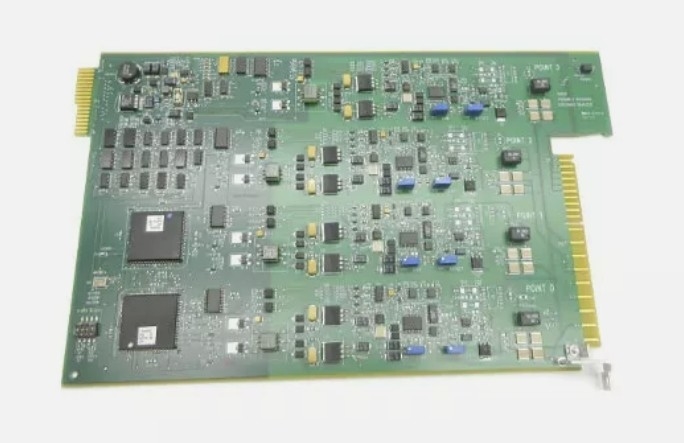

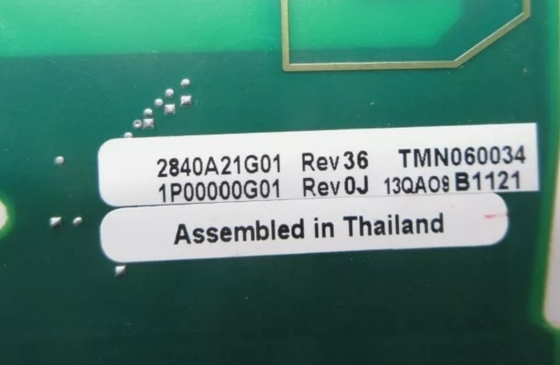

Name: 2840A21G01 Westinghouse Ovation Analog Output CE MARK Certified System
Brand: Joyoung International Trading Co.,Ltd
SKU: 2840A21G01
Price: 500 USD
Availability: InStock

Home Products Westinghouse Ovation

2840A21G01 Westinghouse Ovation Analog Output CE MARK Certified System

Product Details:

Place of Origin:	USA
Brand Name:	Westinghouse
Certification:	COC
Model Number:	2840A21G01

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$500
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	Westinghouse Ovation Module	Product Model:	2840A21G01
Lead Time:	3-5 Work Days	Condition:	New
Warranty:	12 Months	Shipping By:	DHL,TNT Or EMS,Fedex,UPS
Packing Size:	161612cm	Gross Weight:	1 Kg
Highlight:	Analog Output Westinghouse Ovation System , 2840A21G01 Westinghouse Ovation System , Westinghouse Ovation Analog Output System

2840A21G01 Westinghouse Ovation Analog Output CE MARK Certified System

Product Details:

Brand Name	Westinghouse
Model	2840A21G01
Catalog	Ovation
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$500
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features

G01 provides four, 0 to 20.475 mA current outputs. A 40 VDC supply voltage

is supplied by the QAO Card.

G02 provides four, 0 to 10.2375 VDC analog outputs.

G03 provides four analog outputs with a range of −10.24 to +10.235 VDC.

G04 provides four analog outputs with a range of 0 to 5.1187 VDC.

G05 provides four analog outputs with a range of −5.12 to +5.1175.

G06 provides one analog output with a range of −10.24 to +10.235 VDC.

G07 provides four, 0 to 20.475 mA current outputs. An external 40 VDC supply

is required.

G08 provides one analog output with a range of −10.24 to +10.235 VDC with a

high-speed update.

Description:

The QAO card accepts four 12-bit digital signals via the DIOB and individually converts the data to analog field outputs.

Each two-wire output (plus shield) has an isolated, digital-to-analog (D/A) converter. Several output ranges are provided for unipolar or bipolar voltage outputs.

There are four points available on the QAO Card. Each point is a three-wire output comprised of negative, positive, and shield connections.

The shield is tied to the negative side of the outputs. Each D/A converter (point) converts a 12-bit digital number to a current or voltage field output. These outputs may be unipolar or bipolar. Eight QAO groups are available.

2840A21G01 Westinghouse Ovation Analog Output CE MARK Certified System 0
