Name: IC698CHS017 GE PACSystems RX7i Racks 17 Slot Front And Rear Mount CPU And I/O Configurations
Brand: Joyoung International Trading Co.,Ltd
SKU: IC698CHS017
Price: 1100 USD
Availability: InStock

Home Products GE Fanuc PLC

IC698CHS017 GE PACSystems RX7i Racks 17 Slot Front And Rear Mount CPU And I/O Configurations

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IC698CHS017

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$1100
Packaging Details:	16cm x 16 cm x 12 cm
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IC698CHS017
Condition:	New	Gross Weight/Shipping Weight:	1kg
Packing Size:	16cm X 16 Cm X 12 Cm	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	$1100
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	3-5 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	Rear Mount GE PACSystems RX7i Racks , IC698CHS017 GE PACSystems RX7i Racks , 17 Slot GE PACSystems RX7i Racks

IC698CHS017 GE PACSystems RX7i Racks 17 Slot Front And Rear Mount CPU And I/O Configurations

Product Details:

Brand Name	GE
Model	IC698CHS017
Catalog	IC698
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1100
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features

Provides slot sensing for rack-type I/O modules. No jumpers or DIP switches on the I/O modules are required for addressing of these modules.

Provides automatic daisy chaining of interrupt acknowledge and bus grant signals so no blank slot jumpers are required.

Provides J2 backplane connectors to allow highspeed VME transfers of up to 64 data bits per cycle.

Accepts plug-in RX7i AC power supplies

Supports higher wattage power supply for highcurrent configurations.

Supports an optional cooling fan assembly (required for IC698CPE020 or IC698CRE020).

Description:

The RX7i rack can be used for all RX7i CPU and I/O configurations, Series 90-70 I/O, and VME modules. Backplane connectors are spaced on 0.8" (20.3mm) centers to accommodate single-width RX7i modules, VME modules, and single-width Series 90-70 modules. Double-width Series 90-70 modules use two slots each.

I/O point references for modules in an RX7i rack are configured using the CIMPLICITY Machine Edition Logic Developer-PLC software. For information on configuration, see the software online help and the CIMPLICITY Machine Edition Logic Developer-PLC Getting Started manual, GFK-1918.

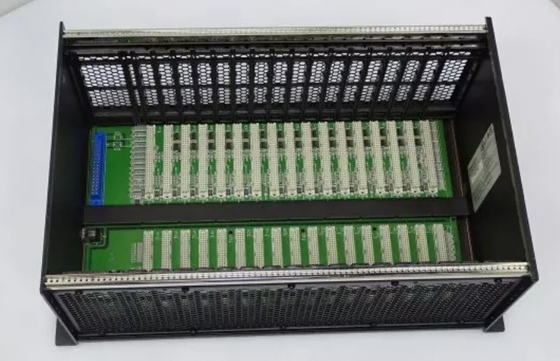

IC698CHS017 GE PACSystems RX7i Racks 17 Slot Front And Rear Mount CPU And I/O Configurations 0

Series 90-70 I/O modules have molded latches that automatically snap onto the upper and lower rails of the rack when the module is fully inserted.

Some VME modules may not have these latches. RX7i modules are mechanically tied to frame ground using screws that secure the top and bottom of the faceplates to the enclosure.

For high vibration applications, other modules can be secured to the rack using M2.5x8 screws.

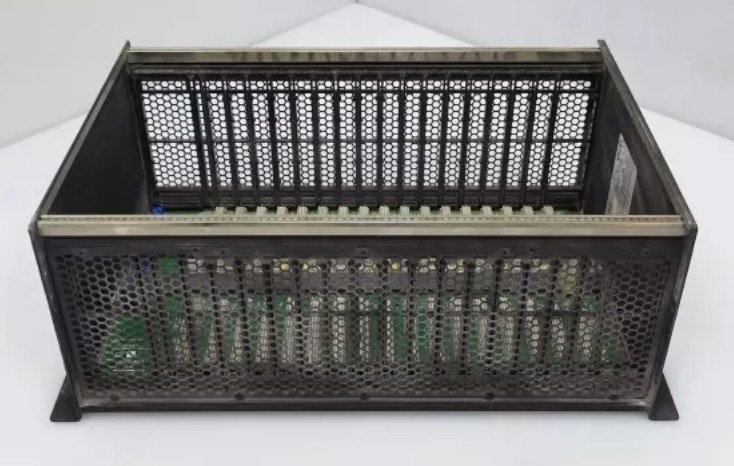

IC698CHS017 GE PACSystems RX7i Racks 17 Slot Front And Rear Mount CPU And I/O Configurations 1

Datasheet Link:GE IC698CHS017.pdf
