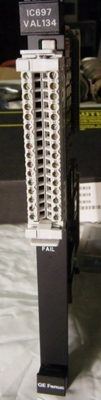

IC697VAL134 GE Analog Input Automation Pioneer PLC Module / Rack 31 Channel 12 Bit

IC697VAL134 GE Analog Input Automation Pioneer PLC Module/Rack 31 Channel 12 Bit

Product Details:

Additional Information:

Description:

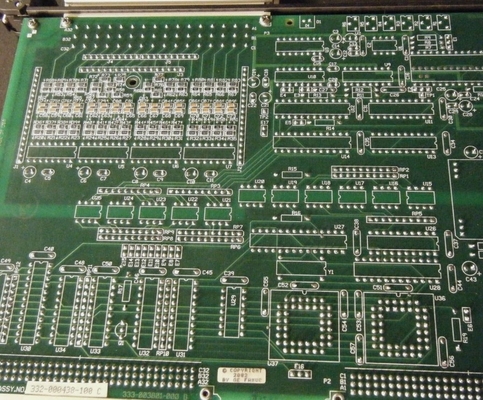

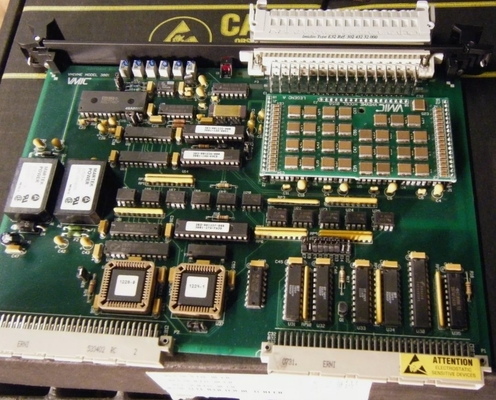

The Analog-to-Digital Converter Board provides automatic scanning of 16 differential or 31 singleended analog input channels. The channels are digitized with a 12-bit resolution Analog-to-Digital Converter (ADC).

Each input is overvoltage protected and low pass filtered. The board is very easy to use; no software setup is required. After power up or system reset.

The Analog-to-Digital Converter Board automatically starts scanning each of its 16 or 31 input channels. Conversion data is stored automatically in dual-port memory (RAM), making it immediately accessible from the VMEbus.

The Analog-to-Digital Converter Board provides on-board voltage references to perform an on-line or off-line built-in self-test. The input voltage range and gain are user-configurable jumpers.

The VMEbus base address and the access mode are fully selectable. In short I/O space, the board can be ordered to support optional current inputs (0 to 20 mA) using 31-channel singleended inputs.
