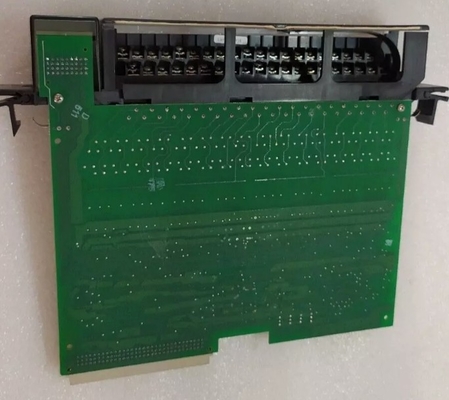

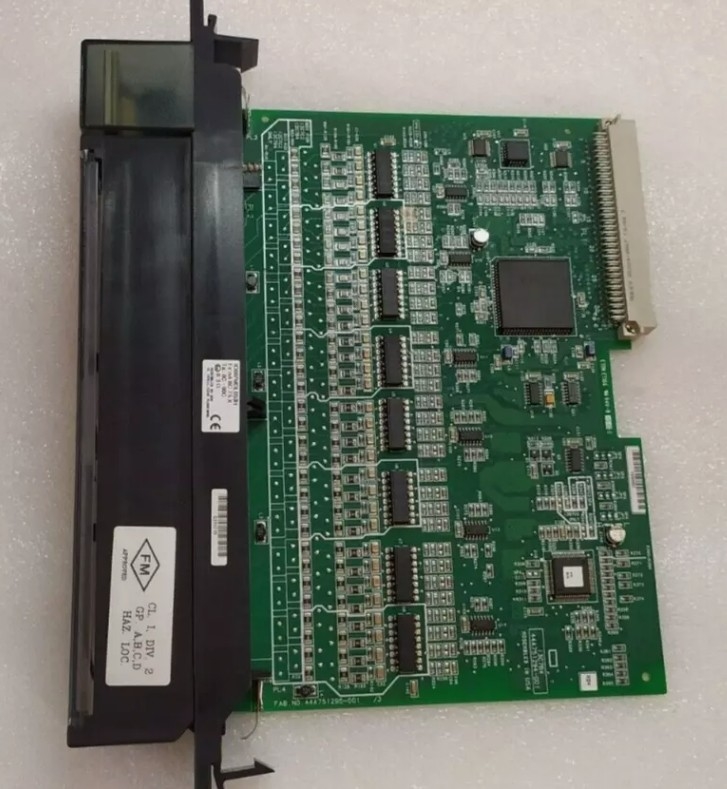

IC697MDL653 GE Discrete Input Modules 24 Volt DC Positive / Negative Logic 32-point

IC697MDL653 GE Discrete Input Modules 24 Volt DC Positive/Negative Logic 32-point

Description:

The 24 Volt DC Positive/Negative Logic Input Module provides 32 input points in four isolated groups of eight points each. The input current-voltage characteristics meet IEC standard (type 1) specifications.

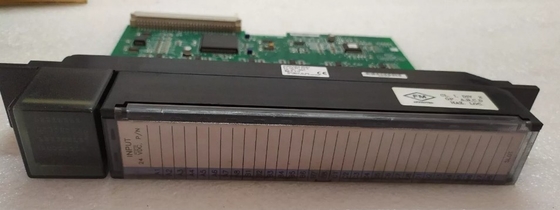

LED indicators which give the ON-OFF status of each point on the logic (PLC) side of the circuit are included at the top of the module.

The module is mechanically keyed to ensure correct replacement with a similar type in the field. I/O references are user configurable without the use of jumpers or DIP switches on the module.

This input module is designed to have both positive and negative logic characteristics in that it sinks or sources current from the input device to the user common.

The input device is connected between the power bus and the module input as shown above. This module is compatible with a wide variety of input devices, such as:

• Pushbuttons, limit switches, selector switches;
• Electronic proximity switches, both 2-wire and 3-wire.

Product Details:

Additional Information:

Datasheet Link:GE IC697MDL653.pdf
