IC697ALG320 GE High Level Analog Output System Voltage Current Module

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IC697ALG320

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$1000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IC697ALG320
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	IC697ALG320 Voltage Current Module , GE Voltage Current Module

IC697ALG320 GE High Level Analog Output System Voltage Current Module

Product Details:

Brand Name	GE
Model	IC697ALG320
Catalog	IC697
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features

High Level Analog voltage and current outputs on one module

Output module has four outputs individually configurable for voltage or current

Provides unipolar or bipolar Analog voltage outputs up to Ç 10 volts full scale

Provides 0 to 22.5 milliamp current loop signals

Individual user scaling on each output channel

Fast update rate

No jumpers or DIP switches for user to configure

Calibrated at factory with factory calibration data stored in non-volatile EEPROM memory

Description:

The high level Analog Output system for the Programmable Logic Controller (PLC) accepts digital data from the CPU or other controllers accessing the PLC backplane.

This output data is converted by a Digital to Analog (D/A) converter to analog outputs of up to 10 volts full scale, or 0 to 22.5 milliamp current loop signals.

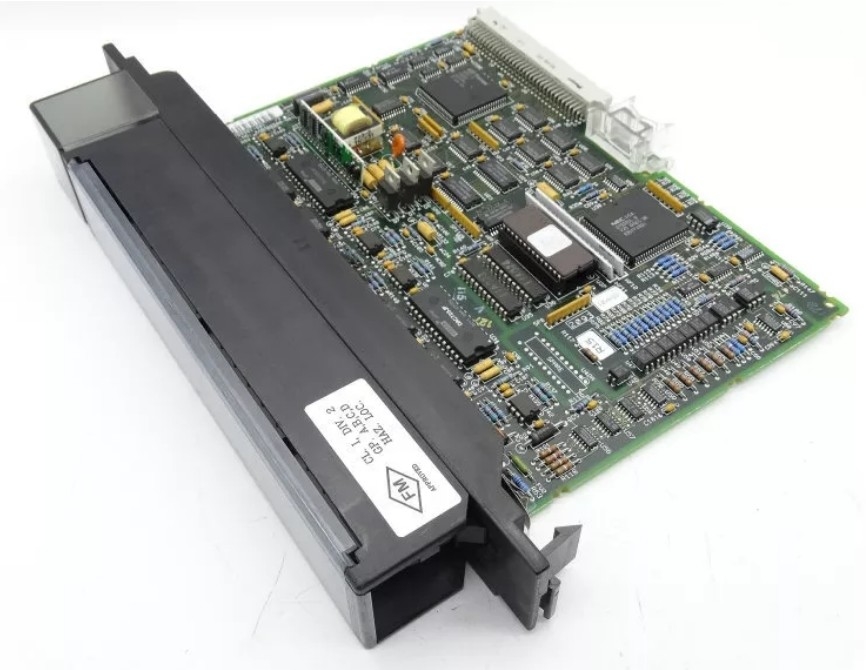

IC697ALG320 GE High Level Analog Output System Voltage Current Module 0

The basic converter is 16 bits resolution (1 part in 65536) with 14-bit monotonicity. Outputs are isolated from the backplane and are protected against transient and steady-state overvoltage conditions.

Analog outputs use %AQ references in the PLC. A maximum of 8K words of %AQ memory is available in the PLC. Each output channel uses one word (16 bits) of %AQ memory.

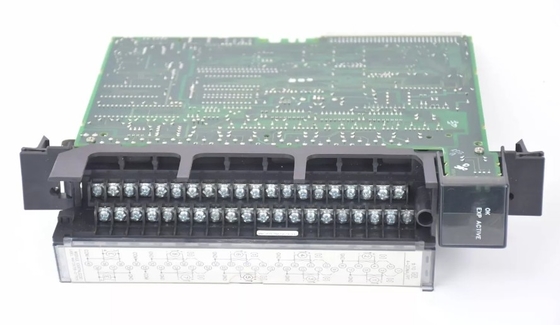

IC697ALG320 GE High Level Analog Output System Voltage Current Module 1

Datasheet Link:GE IC697ALG320.pdf
