Name: IC695ETM001 GE Ethernet Interface Module PACSystems RX3i Controller To An Ethernet Network
Brand: Joyoung International Trading Co.,Ltd
SKU: IC695ETM001
Price: 1000 USD
Availability: InStock

Home Products GE Fanuc PLC

IC695ETM001 GE Ethernet Interface Module PACSystems RX3i Controller To An Ethernet Network

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IC695ETM001

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$1000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IC695ETM001
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	PACSystems RX3i Controller Ethernet Interface Module , IC695ETM001 Ethernet Interface Module , GE Ethernet Interface Module

IC695ETM001 GE Ethernet Interface Module PACSystems RX3i Controller To An Ethernet Network

Product Details:

Brand Name	GE
Model	IC695ETM001
Catalog	IC695
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Ethernet processor speed	200 MHz
Connectors	Station Manager (RS-232) Port: 9-pin female D-connector Two 10BaseT / 100BaseTX Ports: 8-pin female shielded RJ-45
LAN	IEEE 802.2 Logical Link Control Class I IEEE 802.3 CSMA/CD Medium Access Control 10/100 Mbps
Number of IP addresses	One
Number of Ethernet Port Connectors	Two, both are 10BaseT / 100BaseTX with auto-sensing RJ-45 connection
Embedded Ethernet Switch	Yes – Allows daisy chaining of Ethernet nodes
Serial Port	Station Manager Port: RS-232 DCE, 1200 - 115200 bps

Description:

The Ethernet Interface Module, IC695ETM001, connects a PACSystems RX3i controller to an Ethernet network. It enables the RX3i controller to communicate with other PACSystems equipment and with Series 90 and VersaMax controllers.

The Ethernet Interface provides TCP/IP communications with other PLCs, host computers running the Host Communications Toolkit or programmer software.

And computers running the TCP/IP version of the programming software. These communications use the GE Fanuc SRTP and Ethernet Global Data (EGD) protocols over a four-layer TCP/IP (Internet) stack.

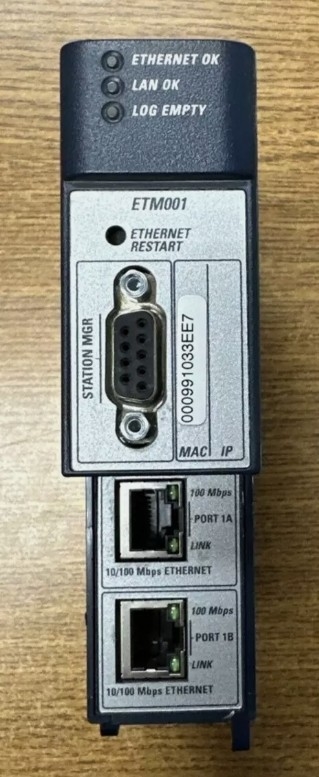

IC695ETM001 GE Ethernet Interface Module PACSystems RX3i Controller To An Ethernet Network 0

SRTP and EGD performance in the RX3i differs slightly from the Series 90-30. Each RX3i Ethernet Interface supports a greater number of SRTP connections and EGD exchanges.

The RX3i currently has several SRTP and EGD operational restrictions compared to the Series 90-30. When migrating Series 90-30 Ethernet applications to the RX3i, please carefully read the Ethernet Operational Notes.

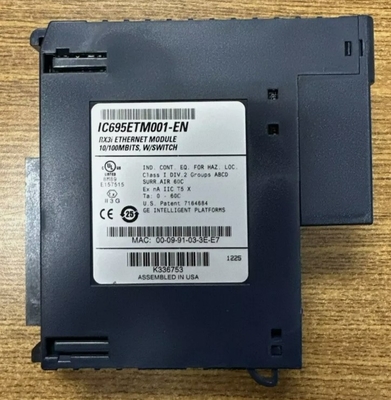

IC695ETM001 GE Ethernet Interface Module PACSystems RX3i Controller To An Ethernet Network 1

Datasheet Link:GE IC695ETM001.pdf
