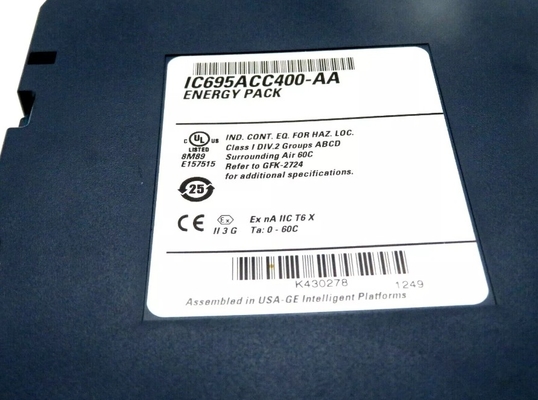

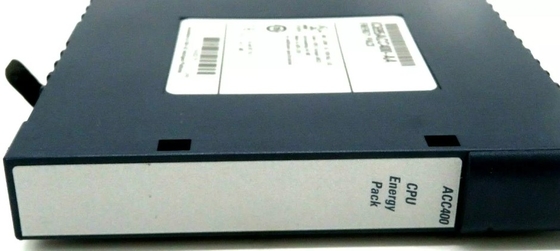

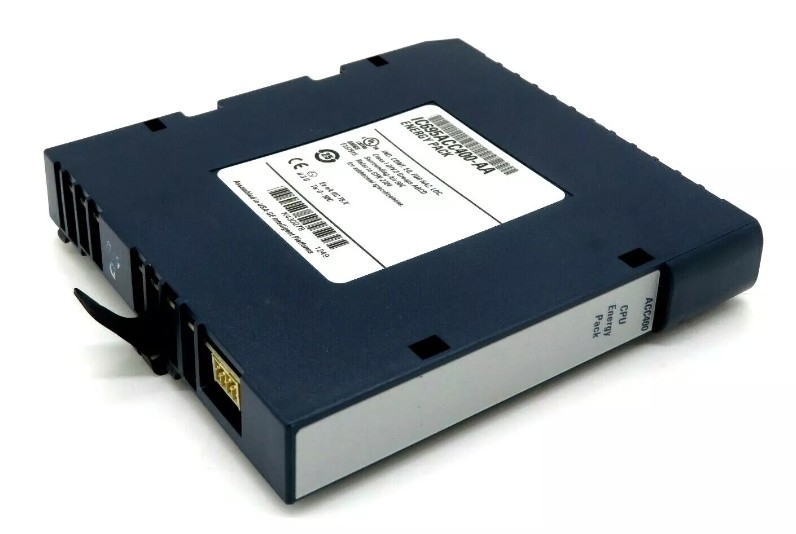

IC695ACC400 GE PACSystems RX3i Energy Pack Accessory Module

IC695ACC400 GE PACSystems RX3i Energy Pack Accessory Module

Product Details:

Description:

The PACSystems* RX3i IC695ACC400 Energy Pack is intended for use with one of the following RX3i CPUs: CPE302, CPE305 or CPE310. It is not compatible with any other CPUs.

In the event of loss of system power, the Energy Pack maintains power long enough for the CPU to write its user memory contents to non-volatile storage (flash) memory.

The Energy Pack is mounted on the left side of an RX3i module and is connected to the CPU using cable IC695CBL001.

While the system is powered up, the Energy Pack charges from the RX3i 24 Vdc rail via the I695CBL001 cable that connects the CPU to the Energy Pack.

The Energy Pack is compliant with EU RoHS Directive 2011/65/EU using the following exemptions identified in the Annex: 7(a), 7(c)-I and III.

The Energy Pack is mounted on the left side of an RX3i module. To avoid taking up a backplane slot, it should be mounted on the module (usually a power supply) in slot 0 of the rack.

It is connected to the CPU by cable IC695CBL001. Note that, when mounted on a module in slot 0, the Energy Pack will extend approximately 13mm (0.5") beyond the left side of the backplane. To install the Energy Pack:

1. Engage the top mounting hooks on the frame of the Energy Pack module as shown in Figure 3.

2. Rotate the bottom of the Energy Pack into place, engaging the bottom hooks. The latch will snap into place.

3. Connect the IC695CBL001 cable from the connector on the bottom of the Energy Pack (Figure 2) to the corresponding connector on the bottom of the CPU.

Datasheet Link:GE IC695ACC400.pdf
