DS200PTBAG1B GE Protection Termination Module Printed Circuit Board Mark V Turbine Control System Series

DS200PTBAG1B GE Protection Termination Module Printed Circuit Board Mark V Turbine Control System Series

Product Details:

Description:

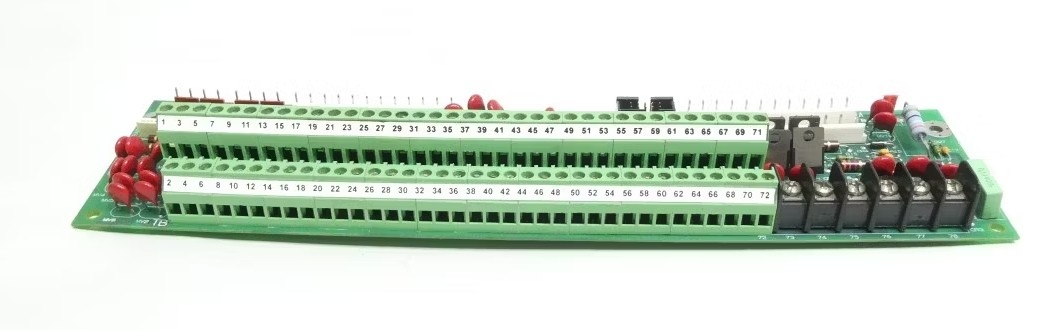

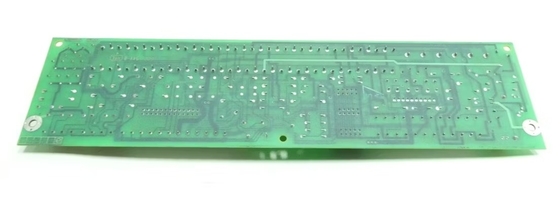

The DS200PTBAG1B is a Protection Termination Board manufactured by General Electric as part of the Mark V LM Series used in gas turbine control systems. The P1 core's signals are terminated by the Protection Termination Module (PTBA), which is located in the core.

The DS200PTBAG1B Mark V Turbine Control System Series printed circuit board product offering is better-definable as a Protection Termination Module.

The original functional description this DS200PTBAG1B board receives in Mark V Series and General Electric instructional documentation.

While this DS200PTBAG1B printed circuit board is certainly definable as a Protection Termination Module, it does not exist as the original product of this functionality within the Mark V Series.

The DS200PTBAG18 has 2 wirina terminals, each for 72 sianal wires lt also includes thres10 pin connectors. The lDs of the 10 pin connector are JR, JT. anoI.

It also includes winng terminals for 6 signal wires. The GE terminal board Ds200PTBAG18 is designed to handle 7 independenterminal signals.

The DS200PTBAG1B signalincludes overspeed magnetic pickup, flame detector, bus voltage,hardware iumper positions for enablinganc CUrent.and disabling alarm horn.
