DS200SIOCG1A GE VME Standard Input Ouput Board Surface Mount 28 V DC

DS200SIOCG1A GE VME Standard Input Ouput Board Surface Mount 28 V DC

Product Details:

Additional Information:

Description:

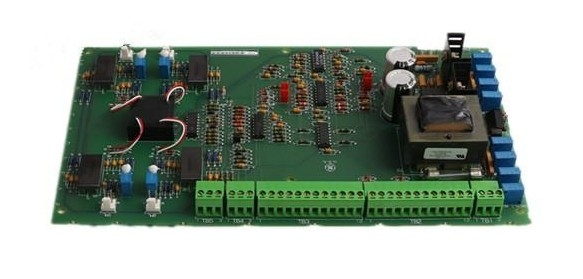

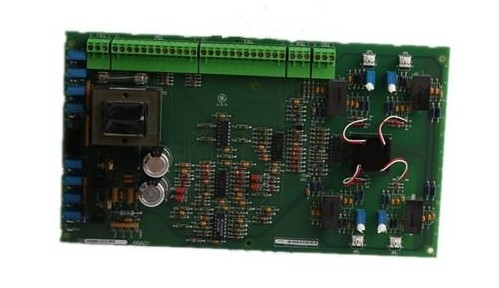

The GE VersalModular Eurcard (VME) Rack IO Board DS200SIOCG1A has five wire terminals to connect 33 signal wires. It also houses a fuse and four 2-pin connectors.

The terminal blocks on the GE VME Rack IO Board DS200SI10CG1A are labeled TB-1, TB-2, TB-3, T8-4, and T8-5 on the board. The wires carry the signals that are transmitted by the board or received by the board during processing.

The wires are held in place with screws that secure the wires in the terminals. Each terminal also has an identifier printed on it.

• VME Standard Compatibility: The board follows the VME standard specifications, which define the mechanical dimensions, electrical characteristics, and signaling protocols for VME modules.
• Input/Output Functions: The I/O board is designed to handle various input and output tasks.
• Bus Interface: The board connects to the VME backplane through the standard VMEbus connectors.
• Application Specific: The specific functionalities of the I/O board depend on the intended application.
• Modularity: VME Standard I/O boards are designed to be modular, allowing users to customize their VME-based systems based on their unique requirements.
• Backward Compatibility: The VME standard has been around for several decades, and many systems still use this architecture.
