DS200TCCBG1B GE TC2000 Extended Analog Input Output Board Mark V Gas Turbine Control Systems

DS200TCCBG1B GE TC2000 Extended Analog Input Output Board Mark V Gas Turbine Control Systems

Product Details:

Additional Information:

Description:

The DS200TCCBG1B printed circuit board or PCB for short, as mentioned previously, was originally designed and produced by respected automated industrial power player General Electric, for insertion in their Mark V Control System Series.

The DS200TCCBG1B PCB is not the original product of its intended functional GE role; that would be the DS200TCCBG1 parent printed circuit board missing this DS200TCCBG1B product's B-rated functional product revision.

As with any General Electric product included in their now-obsolete legacy product series, this DS200TCCBG1B PCB's functionality as a Common Extended Analog I/O Board is introduced through its acceptance of several functionality-inducing hardware components.

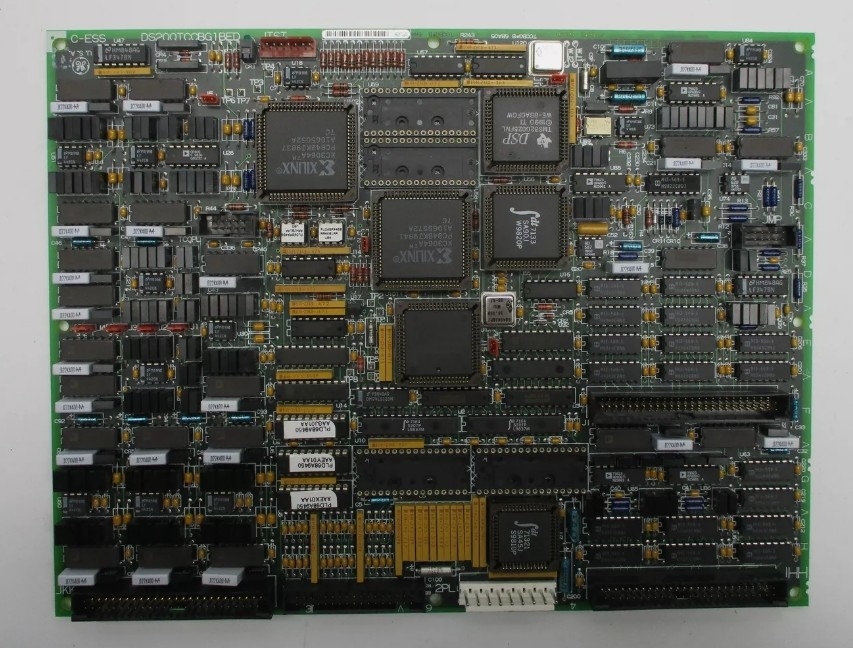

The General Electric I/O TC2000 Analog Board DS200TCCBG1B features one 80196 microprocessor and multiple PROM modules.

It also contains one LED and 2 50-pin connectors. The LED is visible from the side view of the board. The IDs for the 50-pin connectors are JCC and JDD. The board is also populated with 3 jumpers.
