Description:

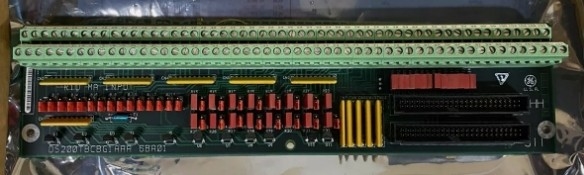

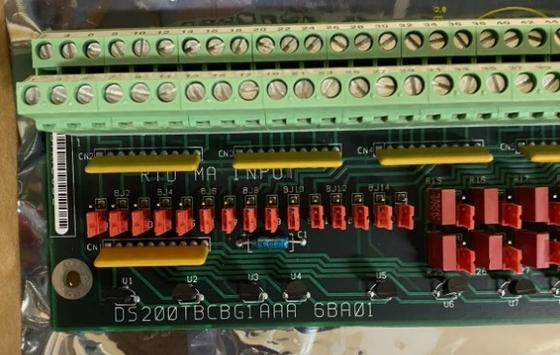

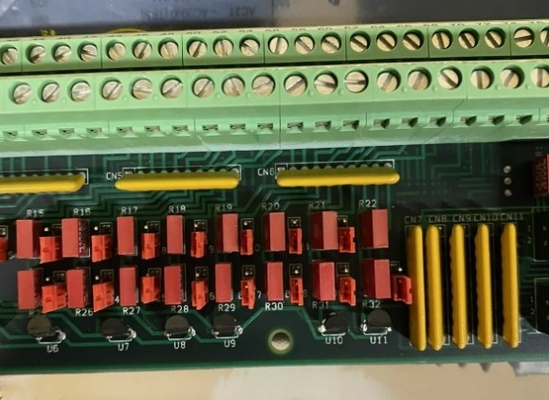

The DS200TBCBG1A is a Termination Module in the GE Speedtronic Mark V LM series of turbine control systems.

This board is not being supported by its original manufacturer anymore and has become hard to locate at times. AX Control does still try to keep this board in stock as either a refurbished or new surplus stock part.

The board can be installed among other I/O control boards in a Mark V turbine control cabinet. Within the cabinet, there are four portions of these boards.

Within an I/O control section, there are 9 total slots, and the TBCB board normally occupies one of the bigger slots below a sequence of 5 smaller boards.

The board is also known as an RTD and 4-20 mA Input Termination Module (TBCB). This board is a part of the R5> core. The input signals received by this board are transmitted to the TCCB board, where they are written on the board.

The TCCB board can also be found in the R5 core. A total of eight of the standard input signals can be transformed to 0-1 mA input signals.
