DS200TCTGG1A GE Turbine Control System Series Simplex Trip TCTG Board Printed Circuit Board

DS200TCTGG1A GE Turbine Control System Series Simplex Trip TCTG Board Printed Circuit Board

Description:

The DS200TCTGG1A is a Turbine Trip Board (TCTG) developed by GE. It controls the fuel shutoff halves for the turbine and is located in position 4 of the core.

On the TCTG board, there are two different trip relay types available for failsafe fuel valve functioning. Primary trip relays (PTRs) and emergency trip relays are both available (ETRs).

The Mark V Series is one of the more recent product series that was manufactured by GE, and is characterizable due to its signature inclusion of General Electric's patented Speedtronic technology.

As with any product produced by General Electric for the Mark V Series, this DS200TCTGG1A Turbine Trip Board has its own series of hardware components and component specifications to consider.

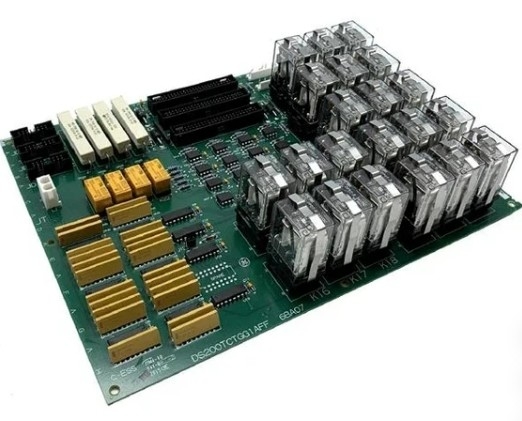

The GE Simplex Trip Board DS200TCTGG1A is populated with 21 plug-in relays. It also has 3 50-pin connectors and 2 12-pin connectors. The IDs assigned to the 50-pin connectors are JLY, JLX and JLZ. The IDs assigned to the 12-pin connectors are JN and JM.

Product Details:

Additional Information:
