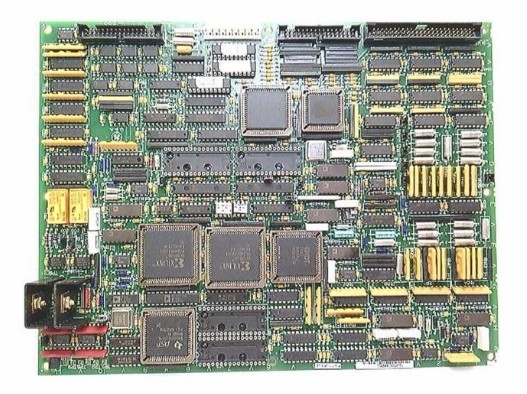

DS200TCQBG1B GE Redundant System Controller RST Extended Analog I/O Board

DS200TCQBG1B GE Redundant System Controller RST Extended Analog I/O Board

Description:

The DS200TCQBG1B is an RST Extended Analog I/O Board manufactured and designed by General Electric as part of the Mark V Series used in gas turbine control systems.

The TCQB multifunction card is located in the R, S, and T cores in location 3. For Simplex applications, only one card is required for the R core. It is an optional card used for extended I/O functions.

The DS200TCQBG1B printed circuit board, as with any product in the Mark V Series, is equipped with its own series of functionality-introducing hardware components and component specifications.

For starters, the GE RST Extended Analog I/O Board DS200TCQBG1B is populated with a programmable logic device and EPROM modules. It also has 1 OK LED that is viewable from the side, 1 50-pin connector, and 15 jumpers.

When you obtain a replacement GE RST Extended Analog I/O Board DS200TCQBG1B it ships to you without erasable programmable read-only memory (EPROM) modules.
