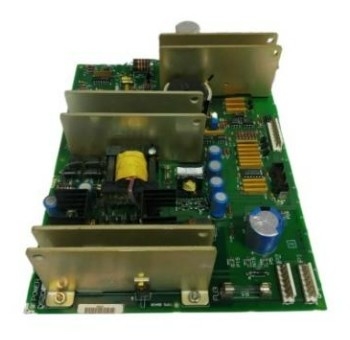

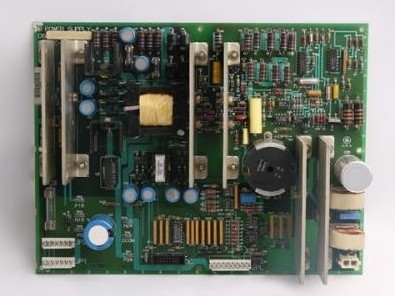

DS200TCPSG1A GE TCPS Power Supply DC Input Board

DS200TCPSG1A GE TCPS Power Supply DC Input Board

Additional Information:

Description:

The DS200TCPSG1A is a DC power supply board developed by GE. To transform 125 V dc power from PD to the necessary voltage levels, the Power Supply Board (TCPS) is situated in R and each of the four IO cores.

These include, but are not limited to, items like servo valve current outputs, RTD power supply voltages, mA output power supply voltages, and microprocessor power supply voltages.

The GE Power DC Input Board DS200TCPSG1A contains three fuses, a 16-pin connector and a 9-pin connector. It also contains multiple test points.

When you suspect that a circuit board has stopped working properly or suddenly stopped working, the first step in troubleshooting is to check the three fuses.

The fuse prevents damage to the circuit board by shutting it down if there is too much current in the circuit board or if the current flow is abnormal. Have a fuse of the same rating on hand in case it blows.

They must be rated exactly the same because different fuses can expose the board to overcurrent conditions and cause damage. Three fuses protect three different circuits on the board from damage caused by excess power.
