DS200TCPDG1B GE Power Supply Distribution Module PCB Mark V Control Spares

DS200TCPDG1B GE Power Supply Distribution Module PCB Mark V Control Spares

Description:

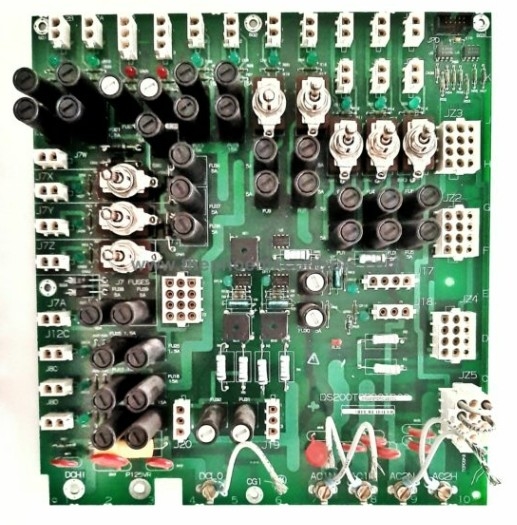

The DS200TCPDG1B is a Power Distribution Board and is part of the GE Speedtronic Mark V gas turbine control. There are 8 toggle switches, 36 fuses, and four signal wire connections on this unit. There are also 36 OK LEDs and a 10-pin connector on it.

The operator cannot see the state of the fuse since the fuse housings are dark plastic. A simple glance at the OK LEDs, on the other hand, provides all of the required information. Each fuse has a unique identifier.

The ID begins with FU and is followed by a number. One fuse holder, for example, has the ID FU1, another has the ID FU2, and yet another has the ID FU3.

Four signal wire terminals are used to connect copper signal wires to other components on the board. To disconnect the signal wire from the terminal, use a screwdriver to loosen the retaining screw.

Pull the wire out of the terminal and move it to one side. To install the signal wire, insert the copper end into the terminal and tighten the set screw with a screwdriver.
