Description:

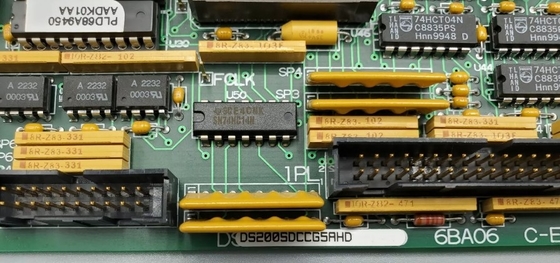

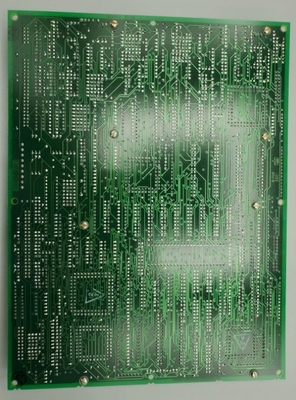

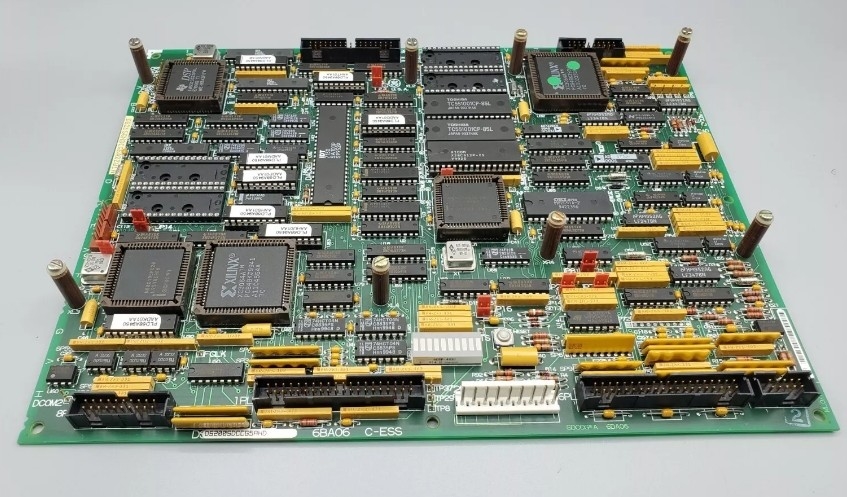

The DS200SDCCG5A is a Digital Exciter Drive Control Card manufactured and designed by General Electric as part of the EX2000 Series used in the Excitation Control systems. The Drive Control Card (SDCC), which is the main processor board, contains the EX2000's primary control circuitry.

It consists of three 16-bit microprocessors and associated circuits coupled via dual-ported RAM. It includes general-purpose interface circuitry that connects with other boards to form various types of excitation systems.

This SDCC-abbreviated Drive Control Board necessitates its own specific series of hardware component inclusions and specifications to gain its intended series functionality. The GE Drive Control Board DS200SDCCG5A is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time.

These microprocessors are assigned a specific task involved in the drive control processing, and the microprocessors have installed on them the firmware and hardware required to perform their respective tasks.

For example, one DS200SDCCG5A microprocessor is equipped with the processing functionality to perform the math calculations involved in co-motor control functions.
