IS200ERBPG1A GE Processor Module Exciter Regulator Backplane Circuit Board Generators Power Systems

IS200ERBPG1A GE Processor Module Exciter Regulator Backplane Circuit Board Generators Power Systems

Description:

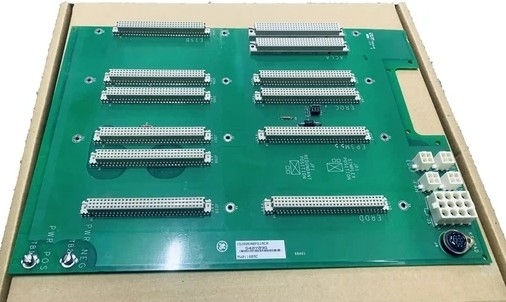

The IS200ERBPG1A is one of the backplane boards within the EX2100 series and can be used with the Mark VI series from GE as well. The power connectors of the board are at the bottom, they are labeled TB1 and TB2, the negative power will be connected to TB2 and the positive power will be connected to the TB1.

In the top corner of the board, there are five connectors; one of them is a keypad connector, three are three-position female plug connectors, and the fifth is a twelve-position female plug connector.

GE has spent more than three decades researching and developing the Speedtronic system to create a reliable, scalable, and complete solution for the management of heavy-duty steam and gas turbine systems.

The Mark 6 uses new technology and integrated proprietary software to create a very good turbine management system. This includes a PC-based human-machine interface (operator interface) that runs software such as General Electric's CIMPLICITY graphics.
