IS200EPDMG1B GE Exciter Power Distribution Module 125 V DC Circuit Board I/O Terminal Protection Board

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200EPDMG1B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$3000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IS200EPDMG1B
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	GE Exciter Power Distribution Module , IS200EPDMG1B GE Exciter Power Distribution Module

IS200EPDMG1B GE Exciter Power Distribution Module 125 V DC Circuit Board I/O Terminal Protection Board

Description:

The IS200EPDMG1B module is another exciter power distribution module. This is the second version of the 1S200EPDM module, which is just a power board in the EXK2100 series.

Since many other power modules will be connected to the board, the toggle switches on the board can be used in addition to Lower power consumption than other power strips. When you cut power to another board, the LED aligned with the other board will turn off to indicate that power is off.

The IS200EPDMG1B board provides a power supply for the other boards such as the protection, control, and I/O terminal boards. The standard power supply for the EPDM board will be a VDC of 125 or a VAC of 115.

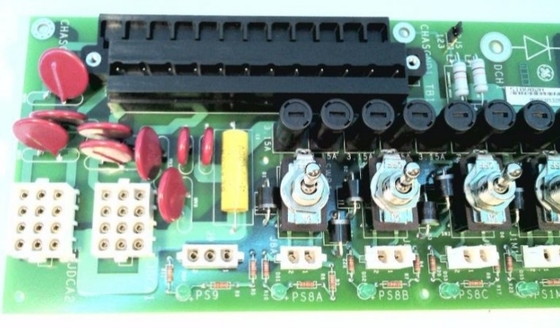

On the board, there are twelve plug connectors; two of the connectors are twelve-position, nine are two-position plugs, and one is a three-position plug, all of the connectors are female connectors.

Additional Information:

Features

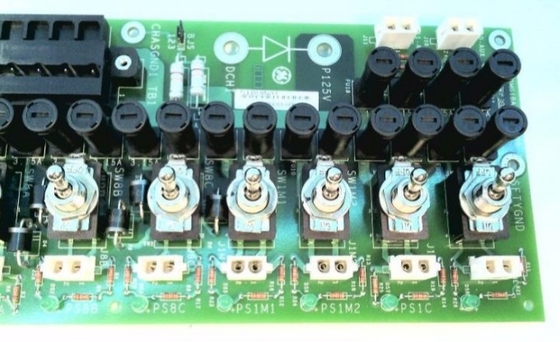

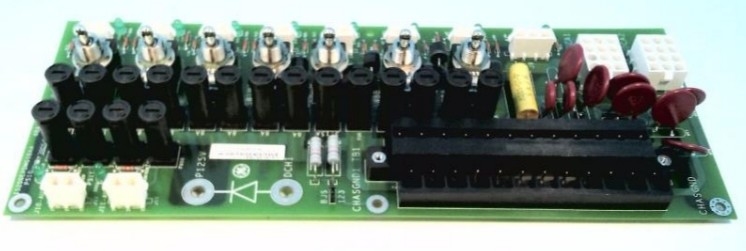

A 24-point terminal block, ten plug connectors, seven switches, fourteen fuses, four grounded mounting holes, eight LED indicators, and a single adjustable jumper are all parts of the EPDM module. Each connector has a 600 V ac or dc rating.

All switches are rated at 125 V dc, 6 A, but the terminal board is rated at 300 V (10 A per pin). On systems with external reference, the adjustable jumper (BJS) isolates the ground reference.

Use static-sensitive handling techniques on all boards to avoid component damage due to static electricity.

When handling boards or components, use a wrist-grounding strap, but only after the boards or components have been taken out of potentially electrified machinery and are at a normally grounded workstation.

Product Details:

Brand Name	GE
Model	IS200EPDMG1B
Condition	New
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country	United States (USA)
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	Inquiry
Color	Depend on product
Warranty	12 months
Lead time	5-8 work days
Courier partners	DHL, UPS, TNT, FedEx and EMS

IS200EPDMG1B GE Exciter Power Distribution Module 125 V DC Circuit Board I/O Terminal Protection Board 0
