Description:

The IS200EXAMG1A Exciter Attenuation Module, designed by GE, serves as a critical component within the EX2100 Excitation Control system. It functions alongside the Exciter Ground Detector Module (IS200EGDM) to provide essential ground detection capabilities.

Housed within the High Voltage Interface (HVI) module, this module effectively attenuates the field bus and EGDM signals by sensing high voltage from the bridge and scaling it to a usable level.

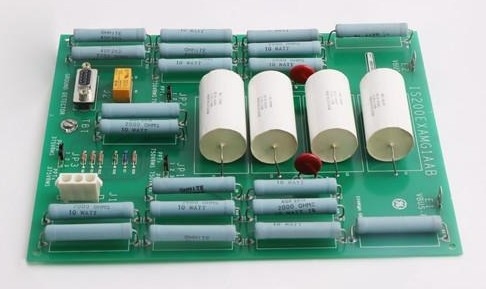

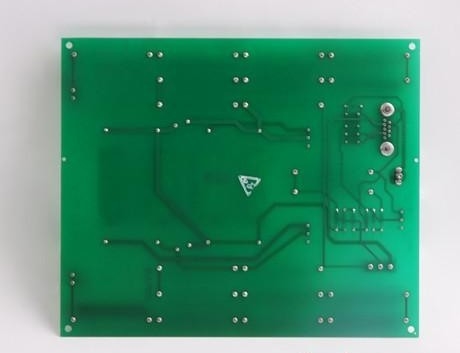

The IS200EXAMG1A module contains a sense resistor that is connected to a resistor network across the field. There are two female connectors on the board, there is a three-position plug as well as a nine-position cable connector.

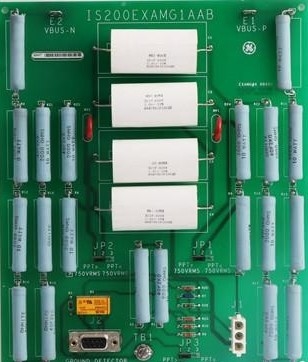

The cable connector will be labeled as the ground detector. Along with the female connectors, there is a single-screw connection that allows for surface wiring connections, two stab-on connectors which are labeled as Vbus-p (E1) and Vbus-n (E2), and three jumpers.
