Name: IS230JPDGH1A GE Power Distribution Module Printed Circuit Board DIN Rail Module
Brand: Joyoung International Trading Co.,Ltd
SKU: IS230JPDGH1A
Price: 3000 USD
Availability: InStock

Home Products GE Fanuc PLC

IS230JPDGH1A GE Power Distribution Module Printed Circuit Board DIN Rail Module

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS230JPDGH1A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$3000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IS230JPDGH1A
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	IS230JPDGH1A Printed Circuit Board , DIN Rail Module Printed Circuit Board

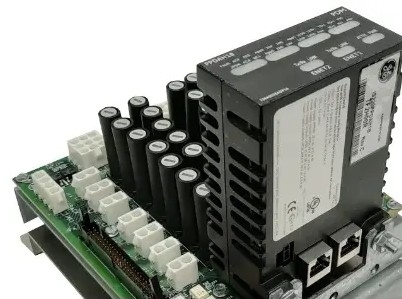

IS230JPDGH1A GE Power Distribution Module Printed Circuit Board DIN Rail Module

Description:

The IS230JPDGH1A is part of the Mark VI series of turbine control units, which are known for their advanced features and reliability. These devices are designed to provide maximum uptime and efficient operation, ensuring that power plants can operate at peak performance.

Along with the other products in the Mark VI series, this device offers superior control and monitoring capabilities, which are essential for efficient turbine operation.

The 28 V DC distribution section of the JPDG board is engineered to accommodate two distinct power supply inputs through external diodes. This feature enhances redundancy and reliability in power supply, ensuring uninterrupted operation even in the event of a power source failure.

Product Details:

Brand Name	GE
Model	IS230JPDGH1A
Condition	New
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country	United States (USA)
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	Inquiry
Color	Depend on product
Warranty	12 months
Lead time	5-8 work days
Courier partners	DHL, UPS, TNT, FedEx and EMS

Additional Information:

Features
Mounting Orientation	Vertically base-mounted on a metal bracket, typically located within the cabinet designated for the Power Distribution Module (PDM). The orientation is vertical, with the module secured to the bracket using four screws positioned at the top and bottom of the module base.
Diagnostic Connector Installation	Positioned at the bottom of the board is a 50-pin diagnostic connector labeled P2. This connector facilitates diagnostic functions and is mounted securely to the board.
Cabinet Location	While the specific location within the control cabinet is not critical, it's advisable to mount the distribution boards, lower within the cabinet. This positioning aids in grounding and accessibility.
Attachment of PPDA I/O Pack	Connector JA1 on the board accommodates the insertion of the Power Distribution System Feedback (PPDA) I/O pack. The PPDA pack is affixed to the base using an angle bracket and secured with nuts threaded onto studs embedded in the base. Routing Diagnostic Feedback: Diagnostic feedback inputs from other distribution boards are channeled to the JPDG via a 50-pin ribbon cable connected to connector P2. This connection enables seamless communication and data exchange between the JPDG and other components within the control system architecture.

IS230JPDGH1A GE Power Distribution Module Printed Circuit Board DIN Rail Module 0
