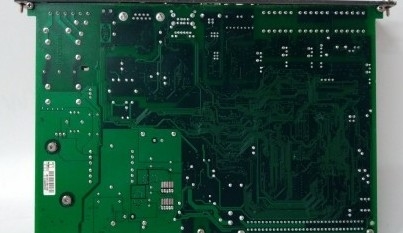

IS200EHPAG1A GE General Electric Gate Pulse Amplifier Board 18 Plug Connectors

IS200EHPAG1A GE General Electric Gate Pulse Amplifier Board 18 Plug Connectors

Description:

The EX2100 model IS200EHPAG1A is a Gate Pulse Amplifier Board produced by General Electric. This model has a total of 18 plug connectors, with 3 different positions, there are eight two-position plugs, four four-position plugs, and two six-position plugs.

The Exciter High Voltage Pulse Amplifier Board IS200EHPAG1A is part of the EX2100 series. The purpose of the pulse amplifier board is to directly control a Silicon Controlled Rectifier (SCR).

On the actual board, there are multiple connectors, a total of fourteen header connectors, and a set of three motherboard connectors. These headers come in different plug options and quantities. Eight of the headers are two plugs, four are four plugs, and two are six plugs. The connector is located in the upper right corner of the board, next to four brackets that can be used to connect optional daughter boards.

The IS200EHPAG1A is a vital part of the EX2100 series, known for its advanced technology and superior performance in industrial control and automation. This series is designed to provide comprehensive solutions for managing power and control systems, ensuring efficient and reliable operation in demanding industrial environments.
