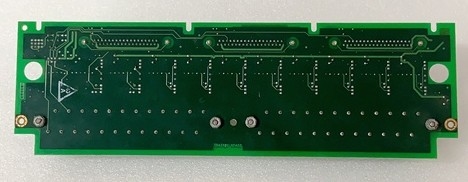

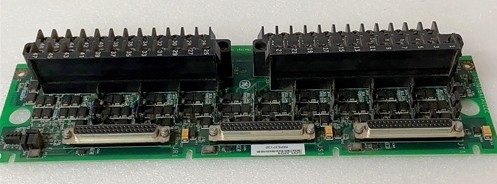

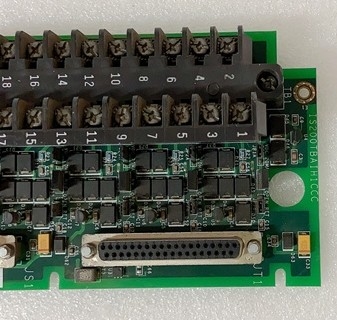

IS200TBAIH1C GE Analog Input Terminal Board Gas Turbine Control System

IS200TBAIH1C GE Analog Input Terminal Board Gas Turbine Control System

Description:

The IS200TBAIH1C is an Analog Input Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in gas turbine control systems.

Two outputs and 10 analog inputs are supported by the Analog Input terminal board. Two-wire, three-wire, four-wire, or transmitters that are powered externally can all be plugged into one of the ten analog inputs. A current of 0-20 mA or 0-200 mA can be configured for the analog outputs. Surge and high frequency noise are protected from by noise suppression circuitry in the inputs and outputs.

The IS200TBAIH1C PLC module is a high-quality programmable logic controller designed for industrial applications. It provides the best performance and advanced functions to meet the needs of automation and control systems.

The I/O controller queries each cable connector's unique ID device on the terminal board. The ID device is a read-only chip that has the JR, JS, and JT connector locations, along with the serial number, board type, and revision number of the terminal board. A hardware incompatibility fault is produced when this chip is read by the I/O controller and a mismatch is discovered.

Additional Information:

Product Details:
