Name: IS200BICLH1A GE IGBT Drive / Source Bridge Interface Board Circuit Board Power Module High-current
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200BICLH1A
Price: 3000 USD
Availability: InStock

Home Products GE Fanuc PLC

IS200BICLH1A GE IGBT Drive / Source Bridge Interface Board Circuit Board Power Module High-current

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200BICLH1A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$3000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IS200BICLH1A
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	Circuit Board GE IGBT Drive , High-current GE IGBT Drive , Power Module GE IGBT Drive

IS200BICLH1A GE IGBT Drive/Source Bridge Interface Board Circuit Board Power Module High-current

Product Details:

Brand Name	GE
Model	IS215VCMIH1B
Condition	New
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country	United States (USA)
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	Inquiry
Color	Depend on product
Warranty	12 months
Lead time	5-8 work days
Courier partners	DHL, UPS, TNT, FedEx and EMS

Additional Information:

Features
Voltage Level Shifting	The board includes circuits for converting the signals from the driver to the appropriate voltage levels for the module.
Overvoltage and Overcurrent Protection	The interface board may include circuits for monitoring the voltage and current levels to protect against overvoltage and overcurrent conditions that could damage the IGBT or other components.
Temperature Sensing	The board may include temperature sensors to monitor the temperature of the power module and provide feedback to the control system.
High Current Traces	The board is designed with high-current traces to handle the high-current switching capability of the module.
Compact Design	The interface board is typically designed to be compact and mounted in close proximity to the power module to minimize the length of the high-current traces, which can reduce noise and improve overall system performance.
Compatibility	The interface board may be designed to work with a variety of drivers and power modules to provide flexibility in system design.

Description:

The IS200BICLH1A is an IGBT driver/source bridge interface board (BICL) built by GE for the Innovation Series. It is a part of Drive Control series. An interface board is a circuit board that is used to interface between an insulated-gate bipolar transistor driver and an power module.

The driver provides the necessary control signals to turn the IGBT on and off, while the power module provides the high-current switching capability.

The purpose of the IS200BICLH1A is to act as a middleman between the Innovative Series drivers and the Bridge Personalization Interface Board (BPIA, BPIB or SCNV), as the main interface between them.

The board is able to monitor the ambient temperature and the bridge temperature. It has an interface with PWM speed control and system fault display. The board has a 1024-bit serial memory, usually equipped with information about the version and identification of the board.

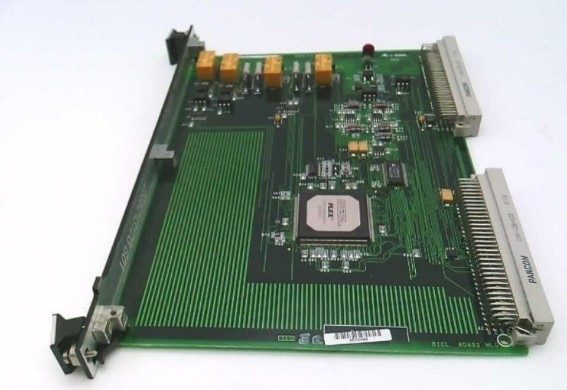

IS200BICLH1A GE IGBT Drive / Source Bridge Interface Board Circuit Board Power Module High-current 0
