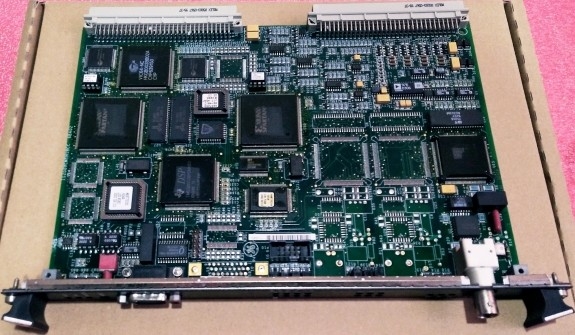

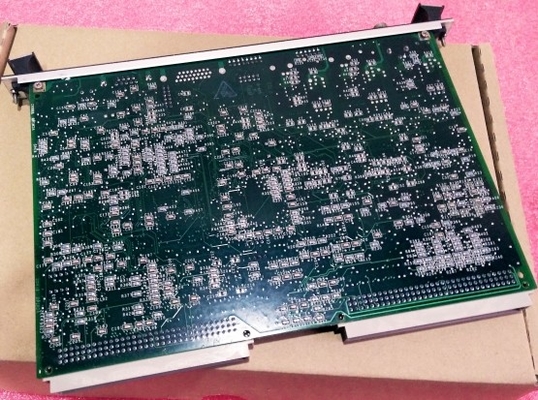

IS215VCMIH1B GE VEM Communications Interface Printed Circuit Board Mark VI IS200

IS215VCMIH1B GE VEM Communications Interface Printed Circuit Board Mark VI IS200

Description:

The IS215VCMIH1B is manufactured by GE and is used as the VCMI bus master controller for the Mark VI system. The Mark VI is one of the last Speedtronic management systems developed by GE for gas/steam turbines.

The Speedtronic management system focuses on improving the efficiency of the associated turbine system by integrating backup controls and using reliable management by better design.

The IS215VCMIH1B is a communication interface to the system control network (IONet,) and also acts as a communication interface between the controller and the Input/Output boards. The IS215VCMIH1B also manages IDs for all the boards within its rack as well as the IDs for their associated terminal boards. The IS215VCMIH1B has a single-slot faceplate designed with multiple components.

The IS215VCMIH1B features a single-slot faceplate designed with multiple components. There are three LED indicators on the top of the faceplate labeled "Run," "Fail," and "Status." They are located above the push-button reset switch and the serial port.

Just below the serial port is another set of LED indicators that are labeled "Module" as a group and are labeled 8, 4, 2, and 1. Next are three LED indicators labeled R, S, and T, and another three LED indicators labeled TX, RX, and CD. They are followed by a single IONet 10Base2 port. The faceplate is connected to the circuit board via three screw connections.
