Description:

IS210DTCIH1A is a Simplex Contact Input with a Group Isolation Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in the GE Speedtronic Control System. A small terminal board made for DIN-rail mounting is the Simplex Contact Input with Group Isolation (DTCI) terminal board.

The DTCI board connects to the VCCC (or VCRC) processor board via a single cable and contains 24 contact inputs with a nominal excitation of 24 V dc. For a total of 48 contact inputs, two DTCI boards can be coupled to the VCCC or VCRC. On a DIN rail, the terminal boards can be stacked vertically to save cabinet space. This board is only offered in a simplex configuration.

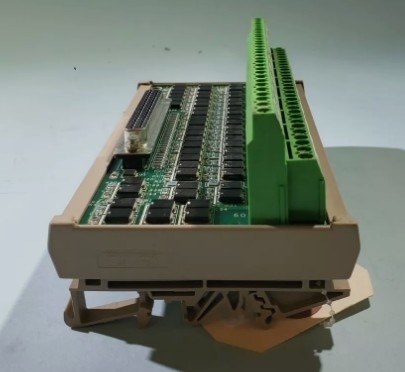

As a Simplex Contact Input with Group Isolation terminal board, the IS210DTCIH1A is a small board that connects via one cable to either a VCCC or VCRC board. Only a simplex version is available of the DTCI board. It mounts via DIN-rails, using the plastic holder that surrounds the edges of the board and its attached clips.

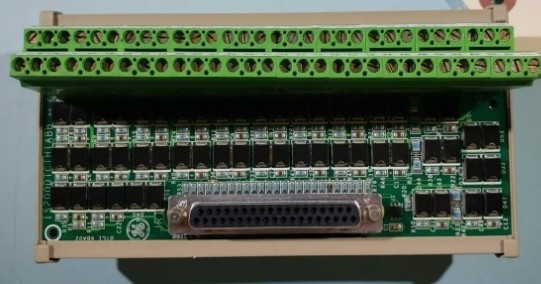

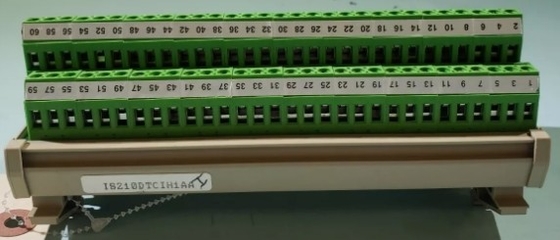

The board has a 37-pin female cable connector with latching fasteners on one board edge. The opposite edge is populated by a 60-terminal Euroblock terminal strip. This strip has been permanently mounted to the board surface.
