IS200VAICH1C GE VME Mark VI Series Analog I/O Input Universal Electrical Terminal Board

IS200VAICH1C GE VME Mark VI Series Analog I/O Input Universal Electrical Terminal Board

Product Details:

Additional Information:

Description:

The IS200VAICH1C is a VME Analog Input/Output (VAIC) Board manufactured by General Electric as a part of the Mark VI Series used in gas turbine control systems. The Analog Input/Output (VAIC) board accepts 20 analog inputs and controls 4 analog outputs. Each terminal board accepts 10 inputs and 2 outputs.

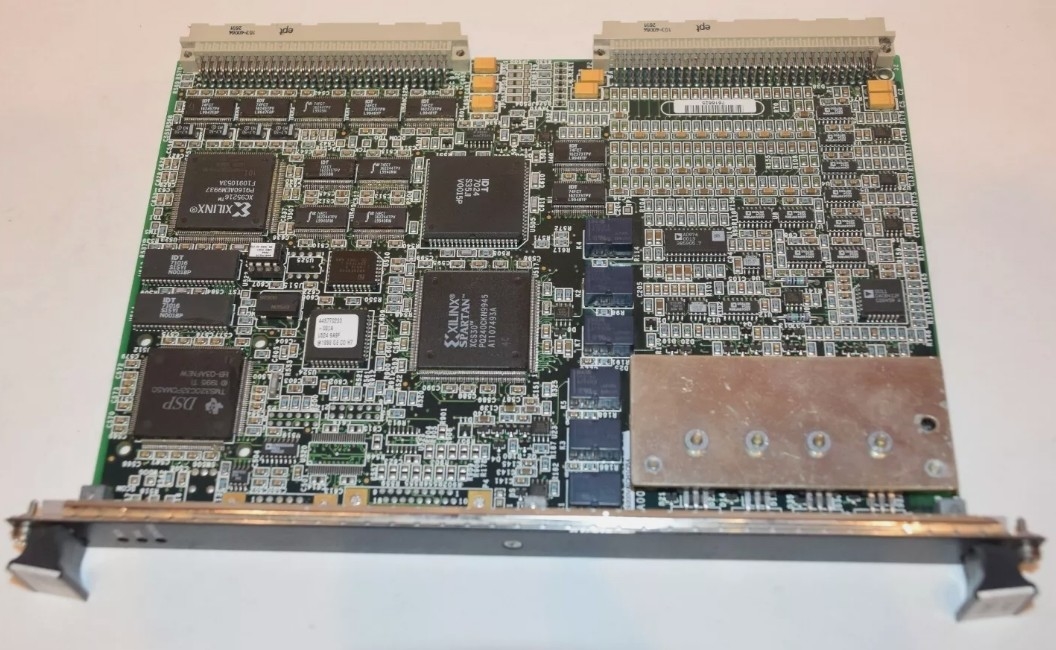

The IS200VAICH1C works with a patch panel that can accept ten inputs and two outputs. This board and its corresponding termination board work within the Mark VI VME processor rack, communicating with other boards within that location. Each board can be individually identified. The IS200VAICH1C board is built with a single-width front panel that includes three status LEDs and two clips to secure it in place once it is installed into the rack system.

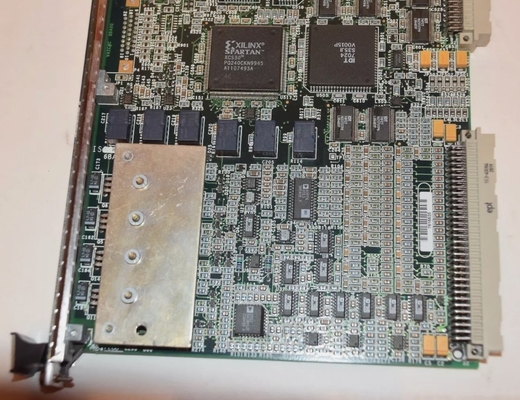

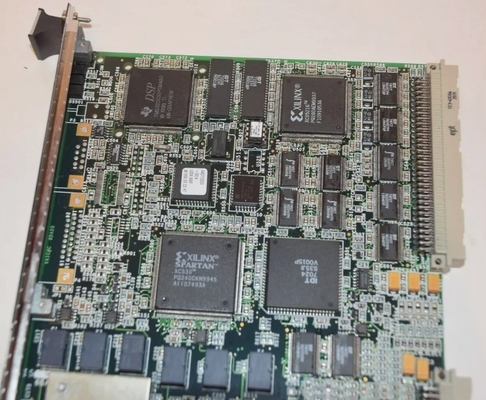

There are two horizontal connectors on the back edge of the board. The circuit board itself consists of capacitors, resistors, processor chips and other ICs, transistors and diodes. Most components are marked with the original manufacturer's markings and their reference names. Codes on the surface of the board will help locate and wire the board.
