IS200WETBH1B GE Advanced Turbine Protection Board Mark VI Printed Circuit Board

IS200WETBH1B GE Advanced Turbine Protection Board Mark VI Printed Circuit Board

Product Details:

Description:

GE IS200WETBH1B and IS200WETBH1BAA are the main turbine protection boards in the Mark VI control system, designed to protect gas and steam turbines. These protection boards play a key role in the safety and reliability of the turbine, providing real-time monitoring and automated protection functions to prevent potential equipment failures.

The IS200WETBH1B is a component created by GE for use within the Mark VI system. The Mark VI is part of the Speedtronic series, which is a gas/steam turbine management series developed by General Electric between the 1960s and the 1990s that focused on improving the running efficiency of their related turbine systems through the use of reliable management. The MKVI is built with both general purpose I/Os as well as application specific I/Os. These control and monitor for issues like flame detection, vibration, shaft voltage build-up, and proper synchronization.

The IS200WETBH1B is mainly responsible for distributing the input power to various control modules and devices, ensuring that they operate under safe voltage and current conditions. Its design takes into account the flexibility of power management and can adapt to a variety of application scenarios to meet the needs of different equipment. At the same time, the board integrates overload protection and short-circuit protection functions, which can effectively prevent electrical faults from damaging the system, thereby improving overall safety.

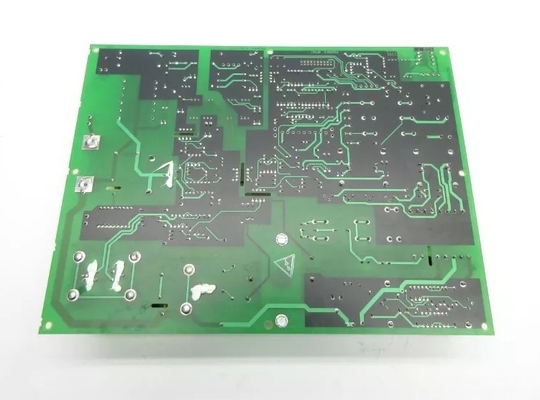

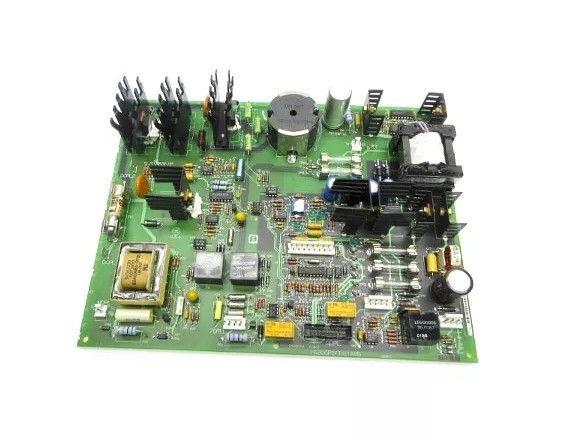

The IS200WETBH1B is a component-dense board. The edge of this board has an exposed copper strip factory drilled at regular intervals. The majority of the board’ s 65+ plugs and connectors are placed along the board edges. These include plugs with two positions up to twenty positions. Female jacks range from four positions to twelve positions. The interior board also has three vertical male connectors; P1 is a 10-pin connector, P2 is a 6-pin header, and P3 is a 4-pin header.

In addition, the IS200WETBH1B has powerful monitoring capabilities, tracking the power status in real time, and timely feedback on changes in voltage and current to provide operators with accurate operating information. This real-time monitoring helps to quickly identify and solve potential problems and ensure the stability of the system.
